Boot CV Joint Housing, Inner [2016-2020, B4204T23, TG-81SC | 2016-2020, B4204T23; B4204T27, TG-81SC AWD | 2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Removal

Remove the following items:

• Driveshaft left, refer to: DRIVESHAFT LEFT
• Drive shaft right, refer to: DRIVE SHAFT RIGHT

Courtesy of VOLVO CARS CORPORATION

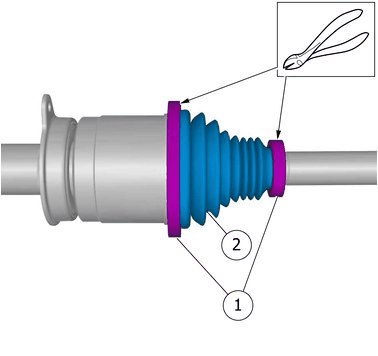

1. Remove the marked part.
2. Loosen the component indicated. Do not remove it.

Courtesy of VOLVO CARS CORPORATION

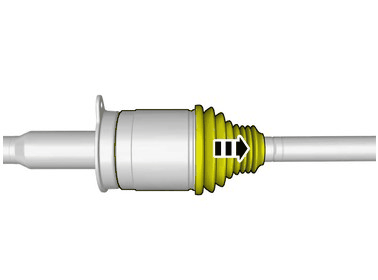

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

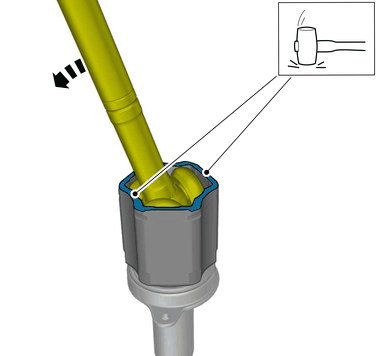

Use:  Plastic mallet

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Use:  Circlip pliers, external

Courtesy of VOLVO CARS CORPORATION

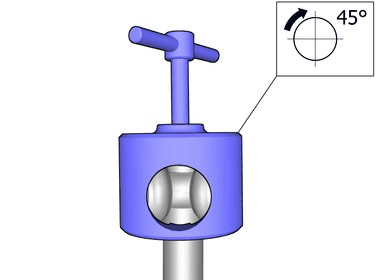

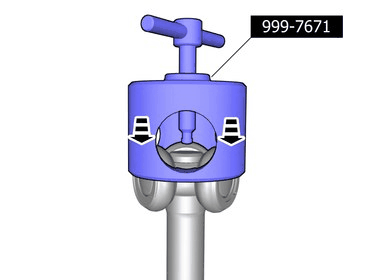

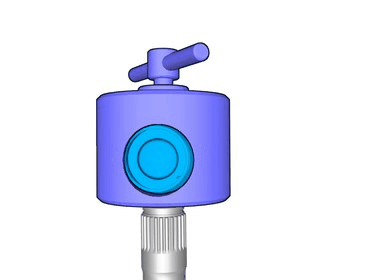

Refer to: Special Tool: 999 7671

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

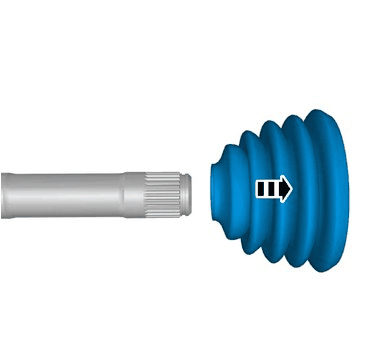

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
