Boot CV Joint Housing, Inner [2016-2020, B4204T23, TG-81SC | 2016-2020, B4204T23; B4204T27, TG-81SC AWD | 2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Notes

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES
SPECIAL TOOLS

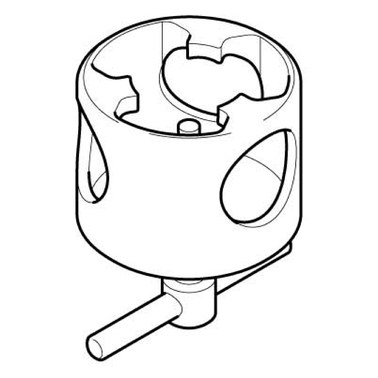

GLL1036179Courtesy of VOLVO CARS CORPORATION
999 7671 Puller
Tool number:  999 7671
Tool description:  Puller
Tool boards:  46
GLL1016794Courtesy of VOLVO CARS CORPORATION
999 7672 Drift
Tool number:  999 7672
Tool description:  Drift
Tool boards:  46
GLL1033860Courtesy of VOLVO CARS CORPORATION
981 4201 Lock grip pliers
Tool number:  981 4201
Tool description:  Lock grip pliers
Tool boards:  80
