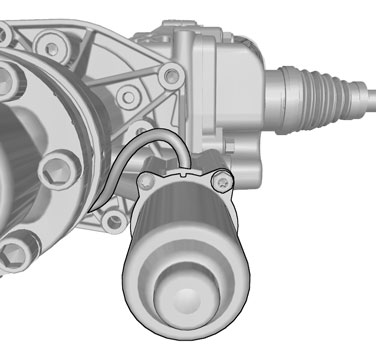

Active On-Demand Coupling Oil Pump [2016-2020, B4204T23, TG-81SC AWD | 2016-2020, B4204T27, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

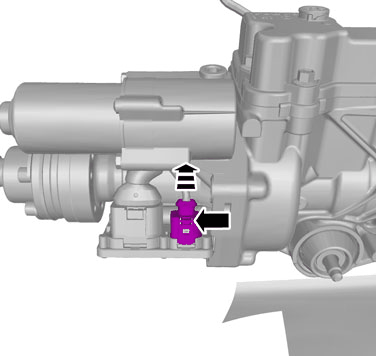

Disconnect the connector.
HINT: Mark the location of the component.

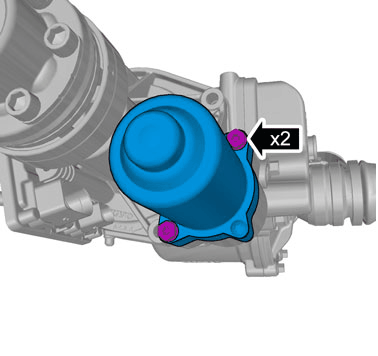

Remove the screws.
Remove the marked part.
Torque: M6, 10Nm
