Final Drive Sealing Ring [2017-2020, B4204T23, TG-81SC AWD | 2016-2020, B4204T27, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the left drive shaft rear, refer to: REAR DRIVE AXLE
CAUTION:
Make sure that new bolts are installed.

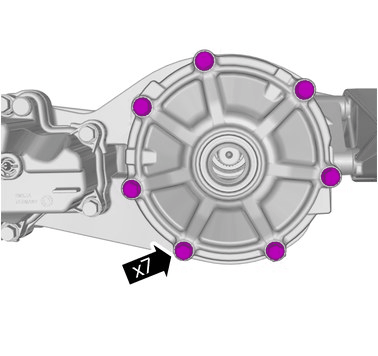

Loosen the screws.
Torque: Cover plate, to Final drive, 29Nm
WARNING:
Be prepared to collect escaping fluid.

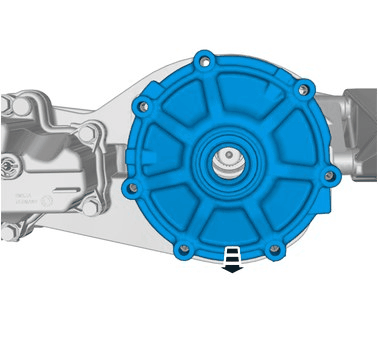

Remove the marked part.

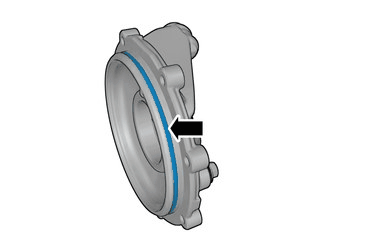

Remove the marked part.

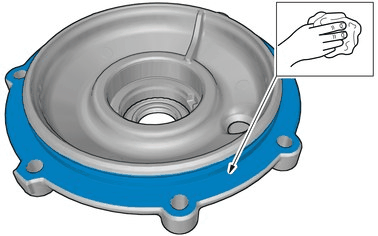

NOTE:
Make sure that the mating faces are clean and free of foreign material.

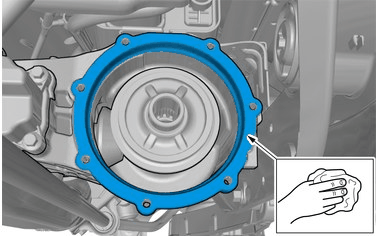

NOTE:
Make sure that the mating faces are clean and free of foreign material.
