Boot CV Joint Housing, Inner [2016-2020, B4204T23, TG-81SC | 2016-2020, B4204T23; B4204T27, TG-81SC AWD | 2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Installation

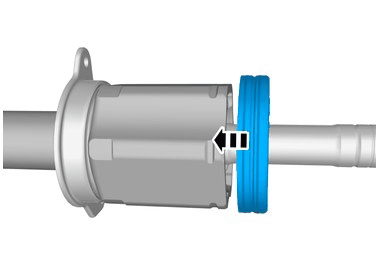

Install the marked component.

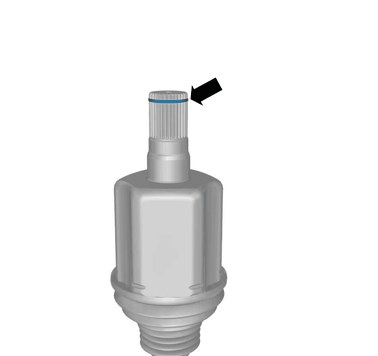

Install the marked component.

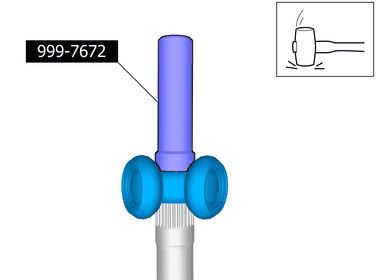

Refer to: Special Tool: 999 7672
Use: Copper mallet
NOTE:
Make sure that a new component is installed.

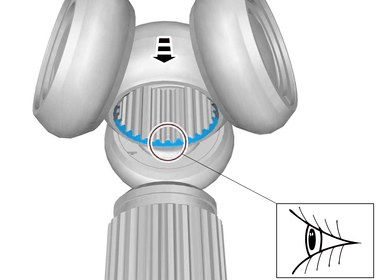

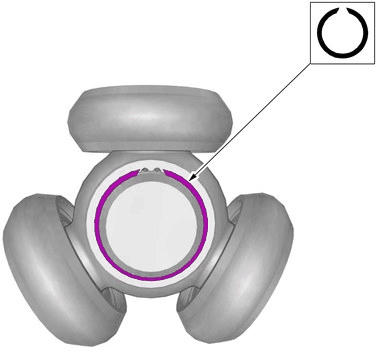

Install the catch.
Use: Circlip pliers, external
CAUTION:

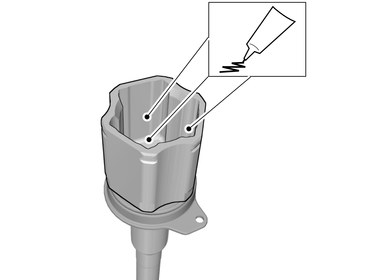

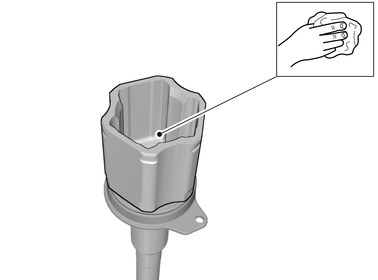

Use all of the supplied lubricant equally on both sides.
CAUTION:
Observe caution when carrying out this step.

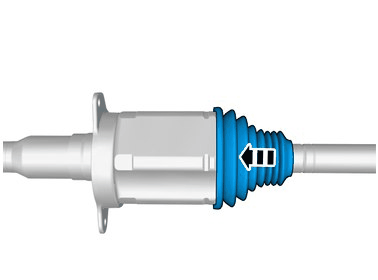

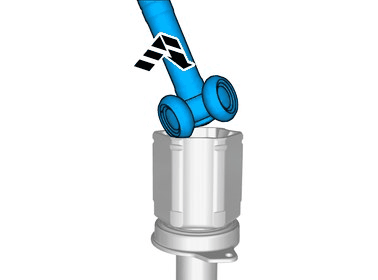

Install the marked component.

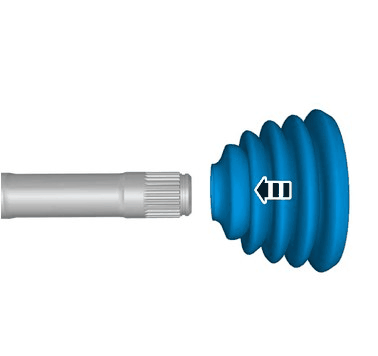

Install the marked component.
Install the marked component.
CAUTION:
Make sure that there is no grease between the boot and its mating faces.
Refer to: Special Tool: 981 4201

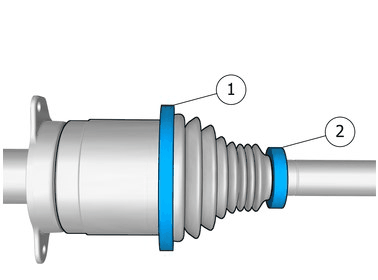

- Torque: CV-joint boot clamp, large, 24Nm
- Torque: CV-joint boot clamp, small, 17Nm
APPLIES TO THE LEFT-HAND SIDE:
NOTE:
Make sure that a new component is installed.
Install the marked component.
ON BOTH SIDES.
Install the following items:
- Driveshaft left, refer to: DRIVESHAFT LEFT
- Drive shaft right, refer to: DRIVE SHAFT RIGHT
