Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM

Activate service mode according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/PBM/Activating and service

Courtesy of VOLVO CARS CORPORATION

Remove relevant side rear wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

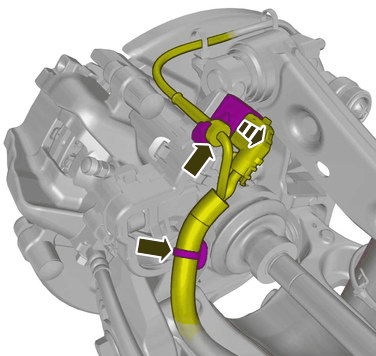

Disconnect the connector.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

NOTE:

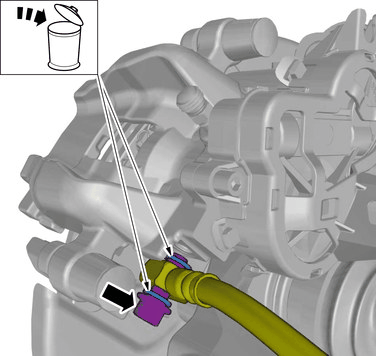

Use new seals.

Remove the screw.

Torque: Brake hose (screw) to brake caliper, 40Nm

Remove brake calliper, refer to: BRAKE PADS REAR

Courtesy of VOLVO CARS CORPORATION

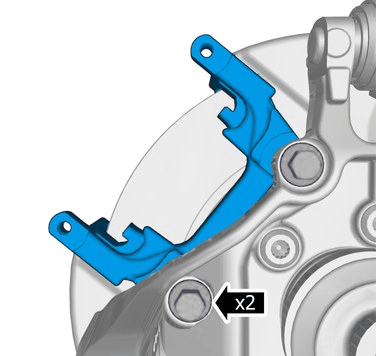

Remove the screws.

Torque:Mount rear brake caliper,

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

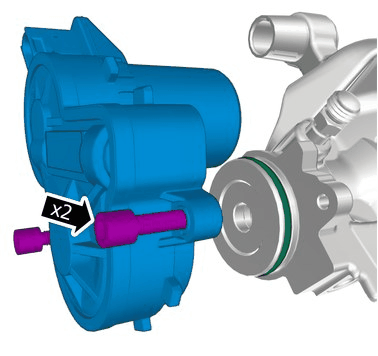

Remove the marked detail/details.

Torque: M6, 10Nm

INSTALLATION

To install, reverse the removal procedure.

Deactivate service mode according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/PBM/Activating and service

Perform bleeding air brake system, refer to:BRAKE SYSTEM BLEEDING
