Front Brake Disc [2016-2020, B4204T23; B4204T27; B4204T28 | 2020, B4204T39]: Installation

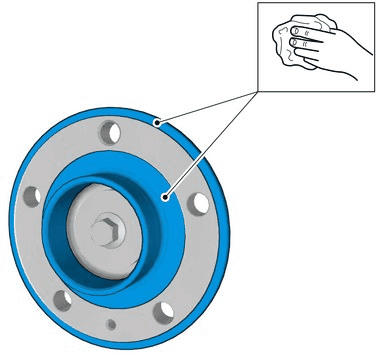

GLL1006234Courtesy of VOLVO CARS CORPORATION
WARNING:

Make sure that the mating faces are clean and free of corrosion and foreign material.

To install, reverse the removal procedure.
