Front Brake Caliper [2018-2020, B4204T23; B4204T27; B4204T28 | 2016-2017, B4204T28, TG-81SC | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM

Courtesy of VOLVO CARS CORPORATION

Remove relevant side front wheel, refer to: WHEELS

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

NOTE:

Use new seals.

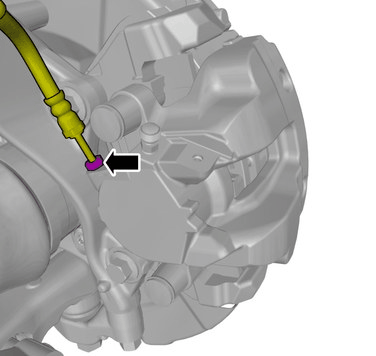

Undo the hose from the connection.

Torque: Brake hose (screw) to brake caliper, 40Nm

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

Undo the hose from the connection.

Torque: Brake hose to front brake caliper, 17Nm

ALL VEHICLES

Remove brake pads front, refer to: BRAKE PADS, FRONT

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Mount front brake caliper, 200Nm
