Brake Pads Rear [2016-2020]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM
Activate service position according to: Diagnostics/Service Functions/Diagnostic Sequences/Parking brake service position
Remove the wheel, refer to: WHEELS
Remove the marked part.
Remove the screws.
Torque: Slide rail rear brake caliper, 28Nm
NOTE:

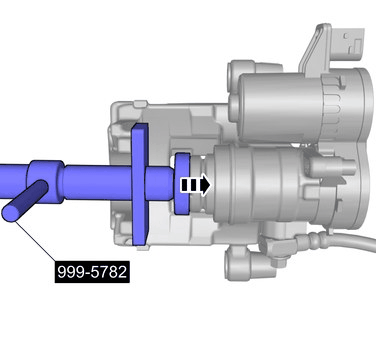

Make sure that the correct side of the tool (flat side) is facing the brake piston. The brake piston must be pushed in, not rotated.
Refer to: Special Tool: 999 5782
