Pedal Box Spring Unit [2016-2020, B4204T28]: Installation
 Courtesy of VOLVO CARS CORPORATION
|

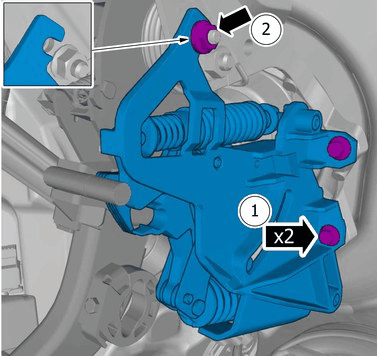

Install the following items:
- Torque:
Spring unit, to Pedal box (screw), 11Nm
- Torque:
Spring unit, to Pedal box (nut), 7Nm
To install, reverse the removal procedure.
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure that the component is positioned correctly.
