Rear Bumper Cover Trim Molding [2019-2020]: Removal

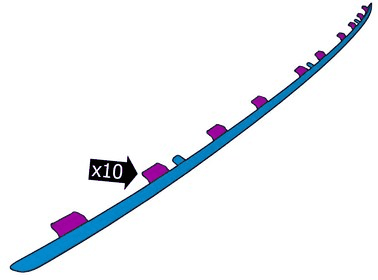

GLL1034845Courtesy of VOLVO CARS CORPORATION
NOTE:

The graphic shows the back of the component before removal.

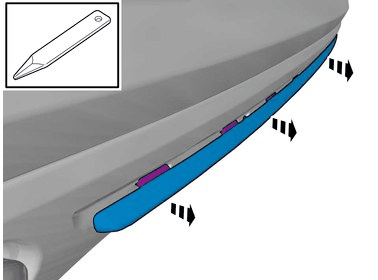

GLL1037703Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Remove the marked part.

Use:  Interior trim remover
