Removal And Installation

REMOVAL

Remove the wheel, refer to: WHEELS

Remove the plenum cover, refer to: PLENUM COVER

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

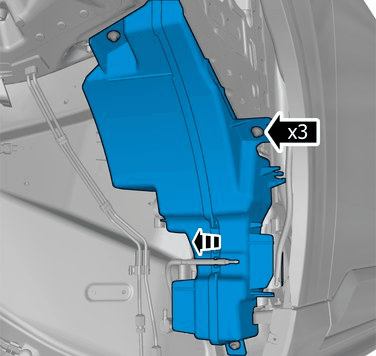

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

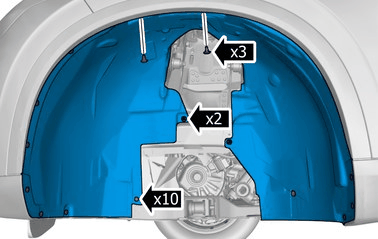

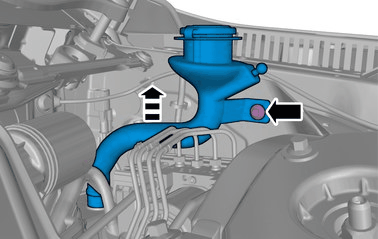

Remove the clips.

Remove the nuts.

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

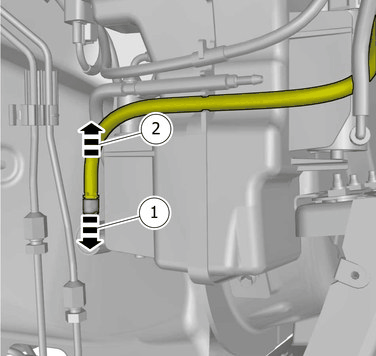

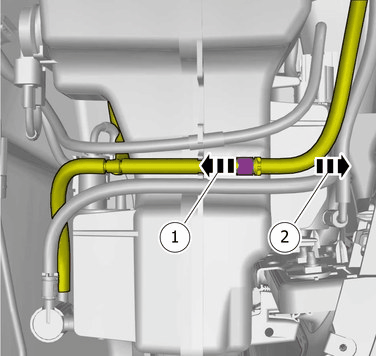

1. Release the lock.
2. Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

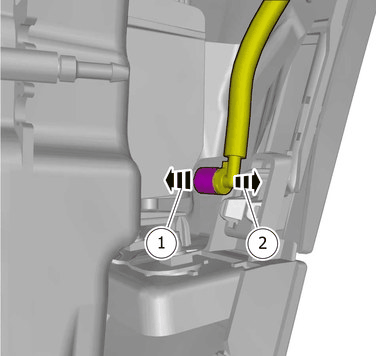

1. Release the lock.
2. Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

1. Release the lock.
2. Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

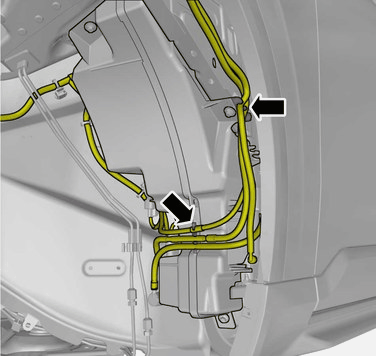

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

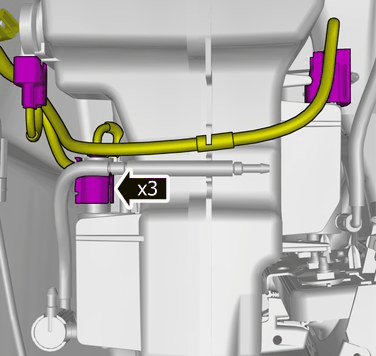

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

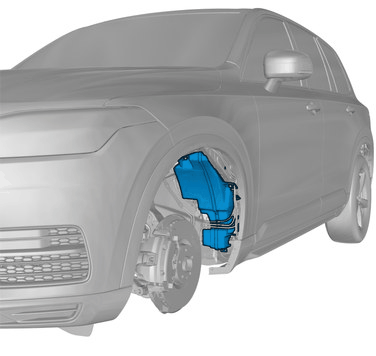

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

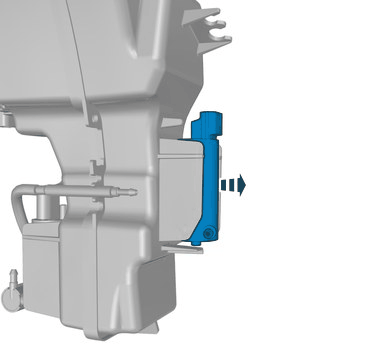

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

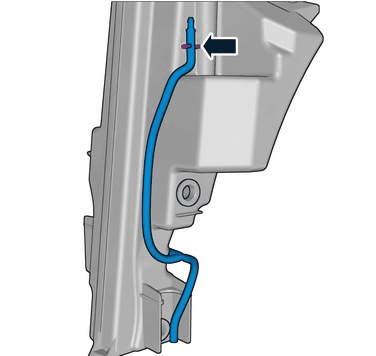

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

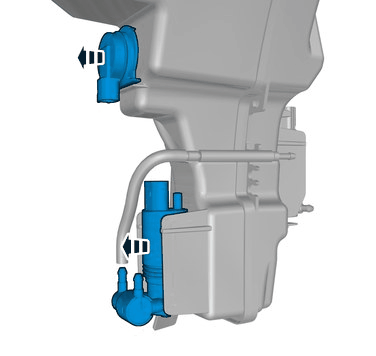

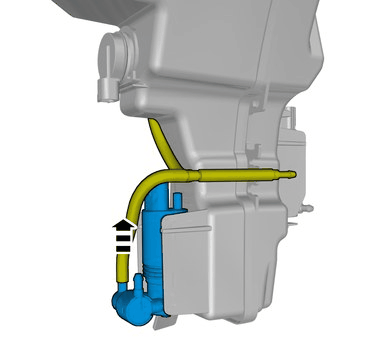

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
