USB Charging Hub (Excellence) [2016, 2018, 2019, 2020]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

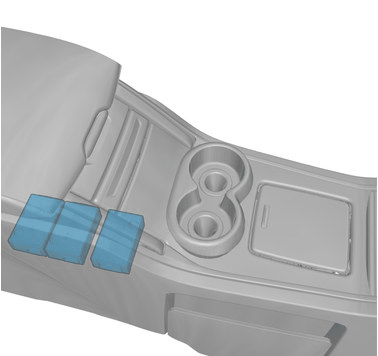

Orientation view

Remove rear floor console (Excellence), refer to: REAR FLOOR CONSOLE

Courtesy of VOLVO CARS CORPORATION

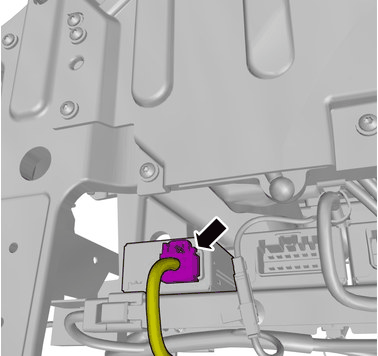

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

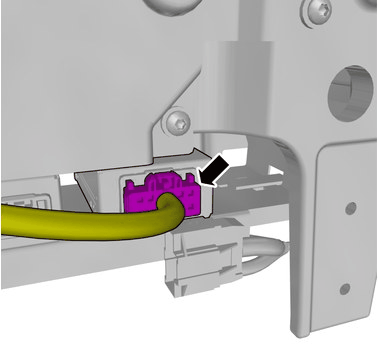

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

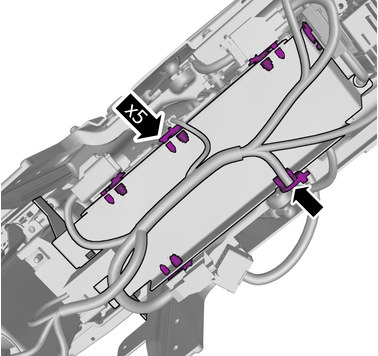

Unhook the cable harness clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

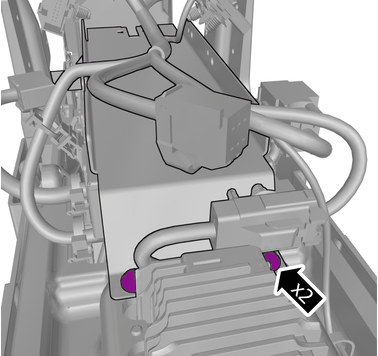

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

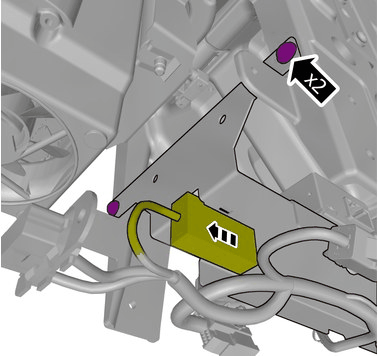

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

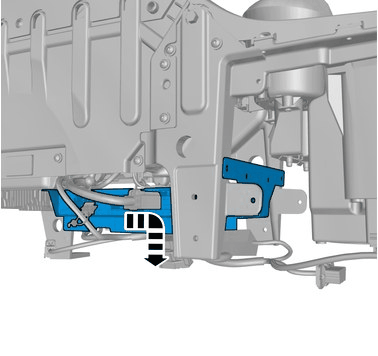

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

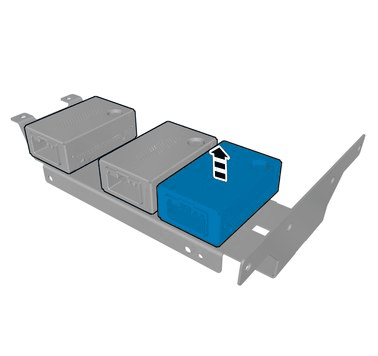

Remove the marked part.
