Antenna, Keyless Vehicle, Rear Door [2016-2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove relevant side panel side door rear, refer to: PANEL REAR DOOR

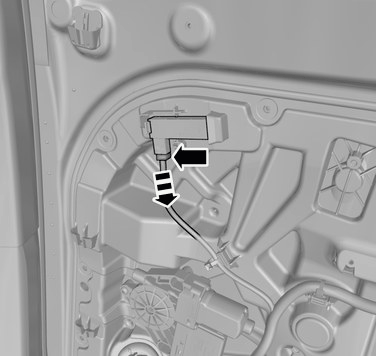

GLL1039956Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

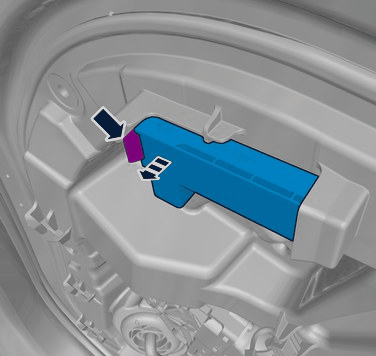

GLL1013879Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the marked part.
