12V Socket, Rear Floor Console [2018, B4204T23; B4204T27]: Removal
 Courtesy of VOLVO CARS CORPORATION
|

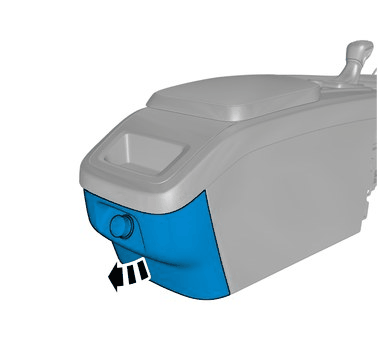

NOTE:
The graphic shows the back of the component before removal.
 Courtesy of VOLVO CARS CORPORATION
|

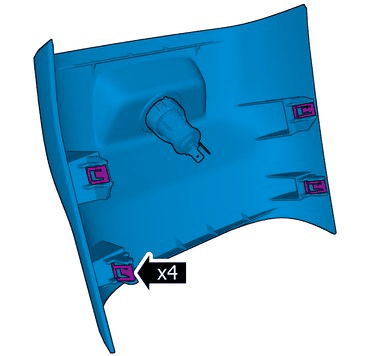

Loosen the marked detail.
 Courtesy of VOLVO CARS CORPORATION
|

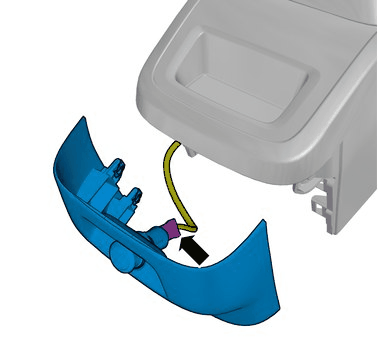

Disconnect the connector.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
- Release the catches.
- Remove the marked part.
Make sure to replace the marked component with a new.
 Courtesy of VOLVO CARS CORPORATION
|
- Release the catches.
- Remove the marked part.
