Side Panel, Seat, Rear [2019-2020]: Removal

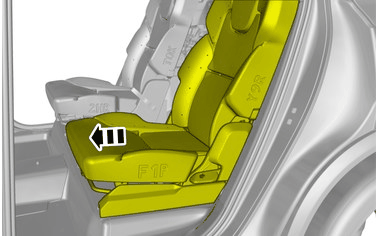

GLL1043496

Courtesy of VOLVO CARS CORPORATION

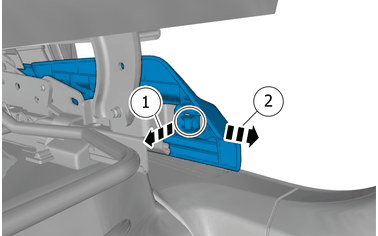

GLL1045663

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1048757

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

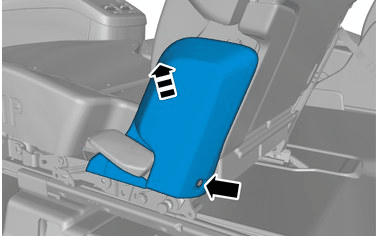

GLL1042592

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

VEHICLES WITH SIX SEATS

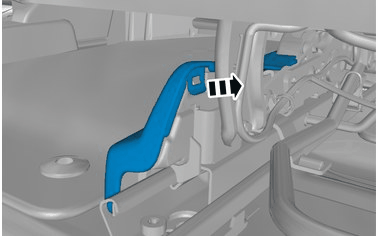

GLL1046284

Courtesy of VOLVO CARS CORPORATION

Release the lock.

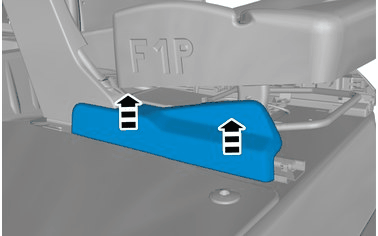

GLL1042548

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

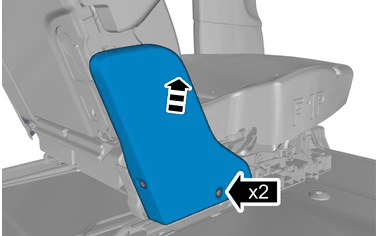

GLL1046220

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.
