Seat, Rear (Excellence) [2016-2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

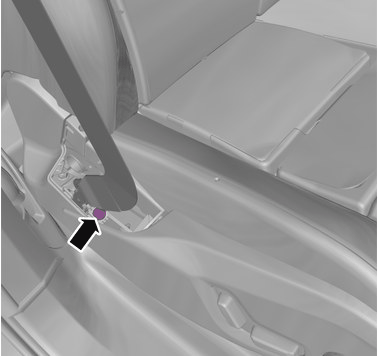

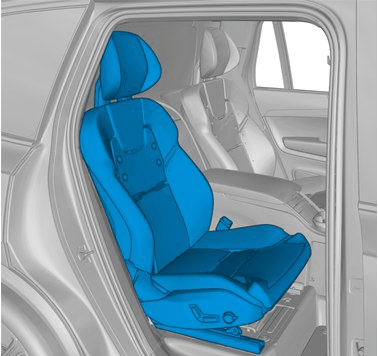

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

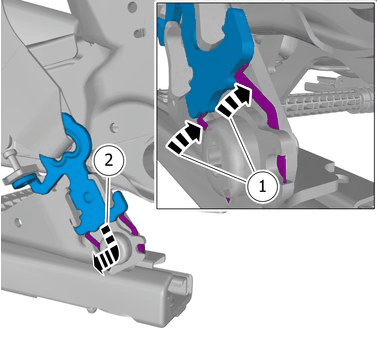

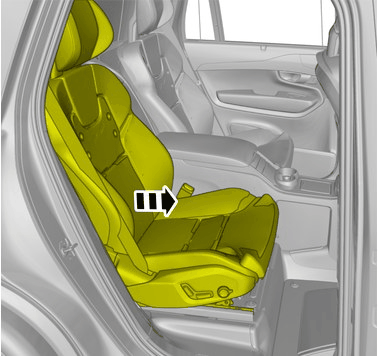

Loosen the component indicated. Do not remove it.

Loosen the screws.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that both release at the same time.

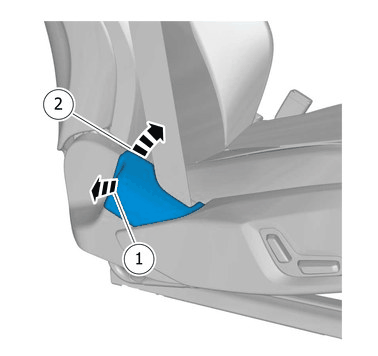

2. Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

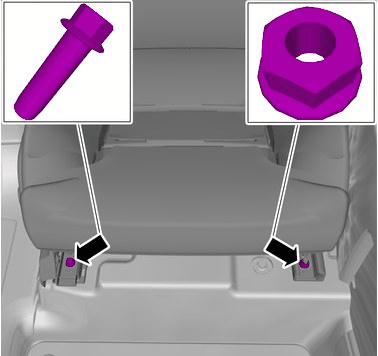

Torque:  Rear seat, to body, 40Nm

Remove the nut.

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

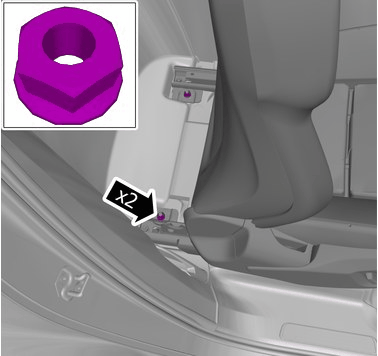

Torque:  Rear seat, to body, 40Nm

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

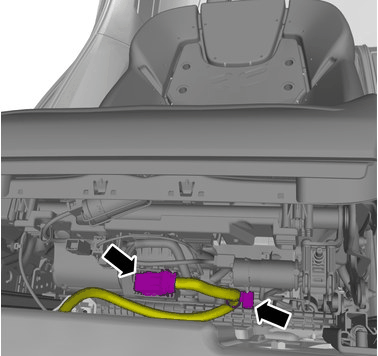

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

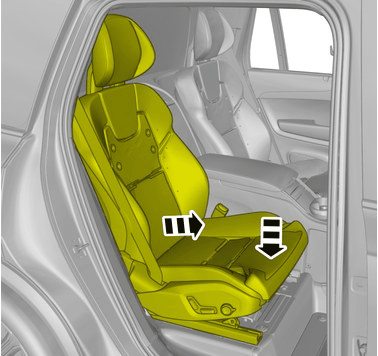

HINT: This step may require the aid of another technician.

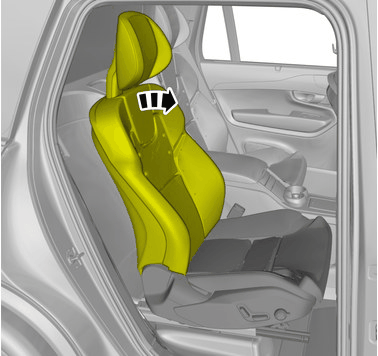

Remove the marked part.
