Seat Cushion, Rear (Excellence) [2017, 2019, 2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

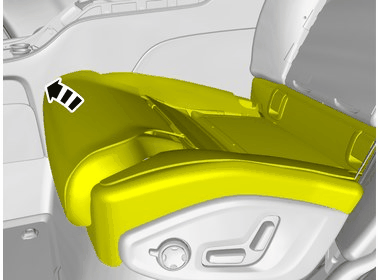

Remove the marked part.

Use:  Interior trim remover

Courtesy of VOLVO CARS CORPORATION

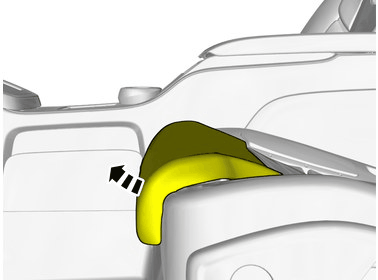

Remove the marked part.

Use:  Interior trim remover

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

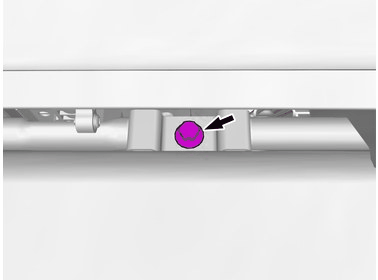

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

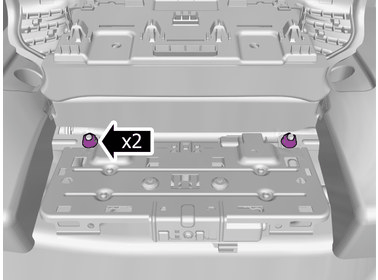

Remove the nuts.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

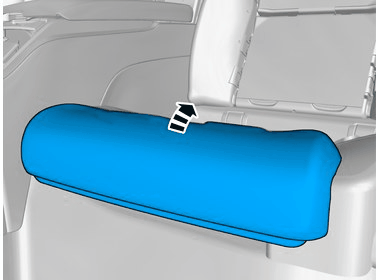

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

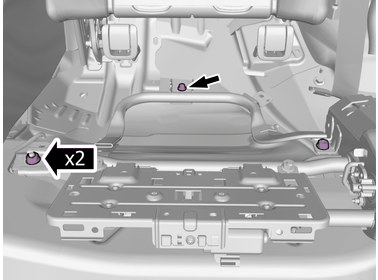

1. Remove the screw.
2. Torque:  M8, 24Nm
3. Remove the nuts.
4. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

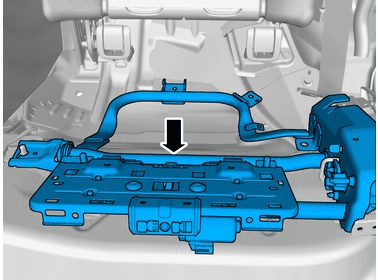

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

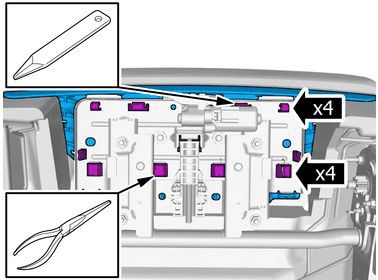

Release the catches.

Courtesy of VOLVO CARS CORPORATION

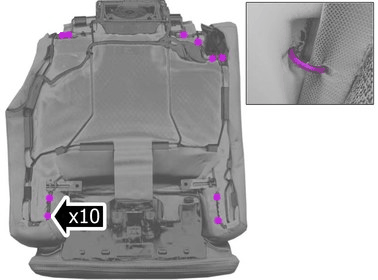

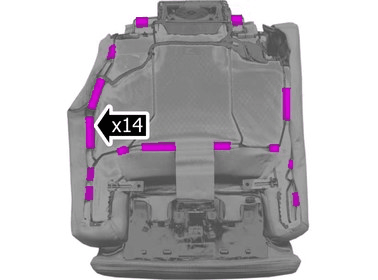

Remove the fasteners.

Use:  Hogring pliers

Repeat all method steps for the other side.
