Seat Backrest, Rear (Excellence) [2017, 2019, 2020, B4204T28 | 2020, B4204T39]: Removal

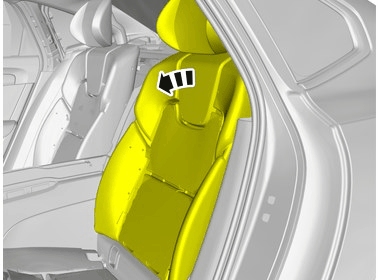

Remove side airbag (Excellence), refer to: SIDE PAD

Remove seat cushion, rear (Excellence), refer to: SEAT CUSHION, REAR

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

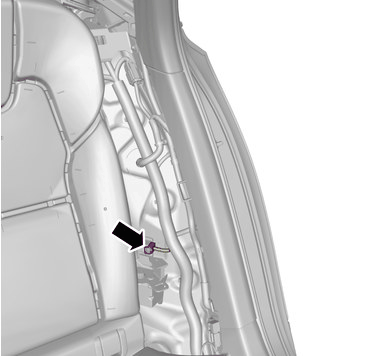

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

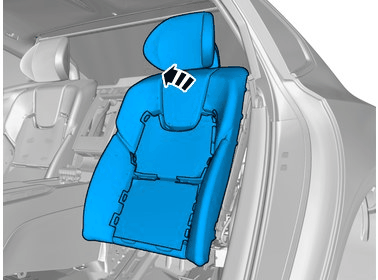

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

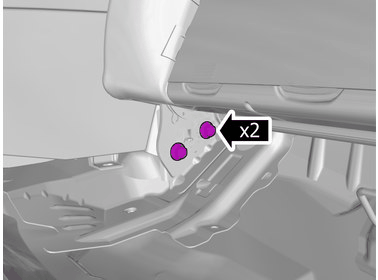

Remove the screw.

Torque:  Rear seat backrest to body, 48Nm

Courtesy of VOLVO CARS CORPORATION

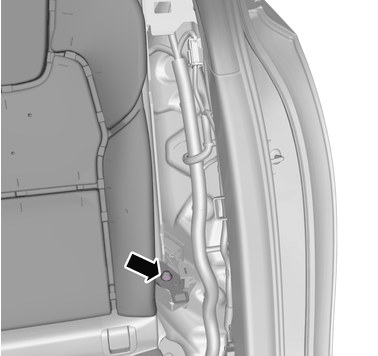

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

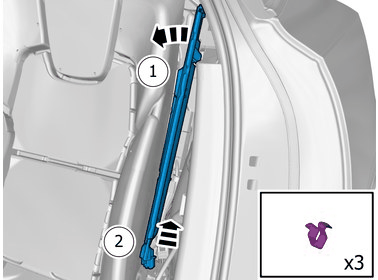

Remove the marked part.
