Rear Center Seat Backrest [2016-2020]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|
Torque:
Rear seat, to body, 40Nm
Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|
Torque:
Rear seat, to body, 40Nm
Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|
HINT: This step may require the aid of another technician.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

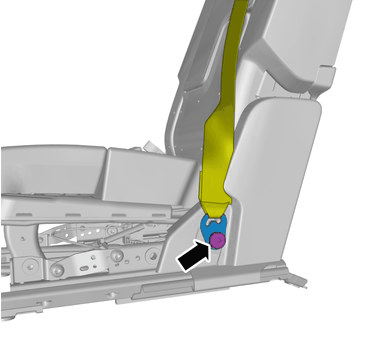

Torque:
Seat belt bracket, to Seat, 40Nm
Remove the screw.
 Courtesy of VOLVO CARS CORPORATION
|

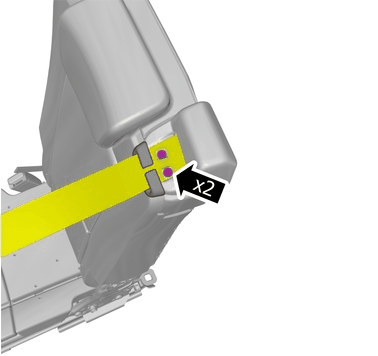

Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|

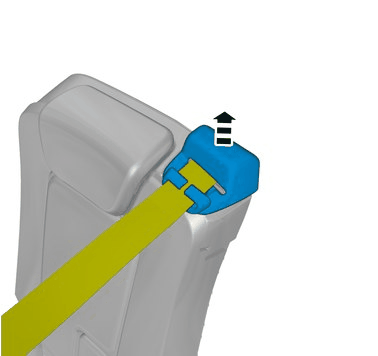

Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

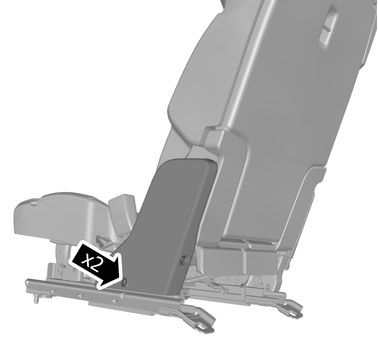

Remove the screws.
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|

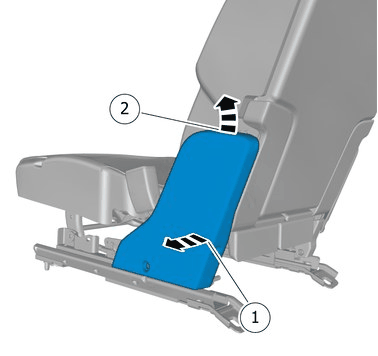

Remove the marked part.
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked detail/details.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
Torque:
M6, 10Nm
Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

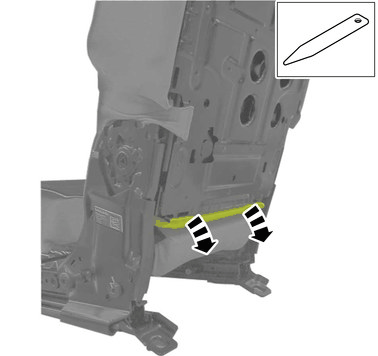

Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|

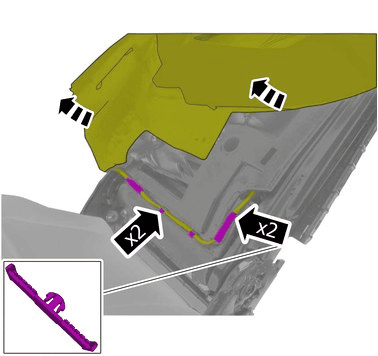

Remove the cable harness clips.
 Courtesy of VOLVO CARS CORPORATION
|

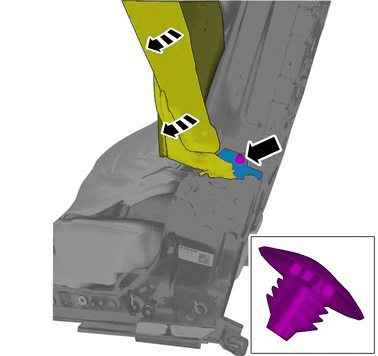

Remove the fastener.
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

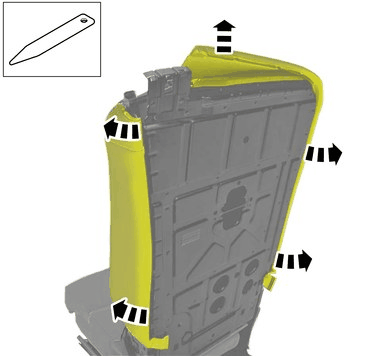

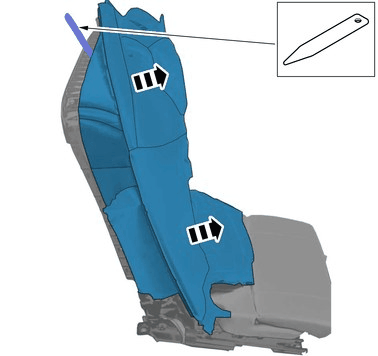

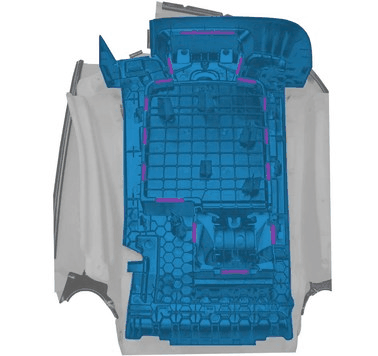

Release the catches.
Remove the marked part.
