Luggage Compartment Sill Moulding [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

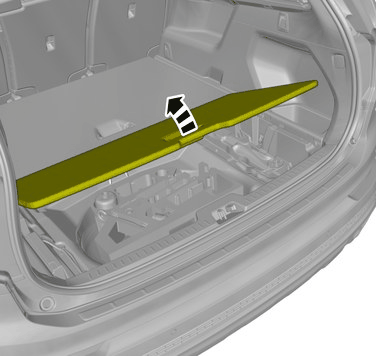

GLL1023056Courtesy of VOLVO CARS CORPORATION

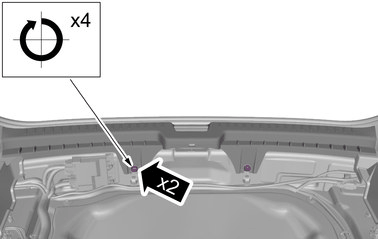

GLL1037457Courtesy of VOLVO CARS CORPORATION
NOTE:

Do not loosen the bolt more than 4 turns.

Torque:  M6, 10Nm

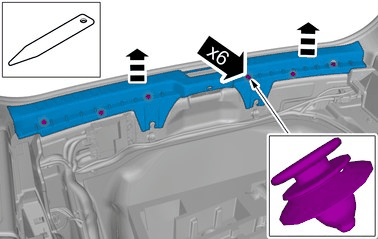

GLL1005111Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
