Load Space Side Panel (Excellence) [2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

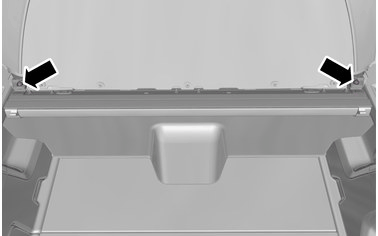

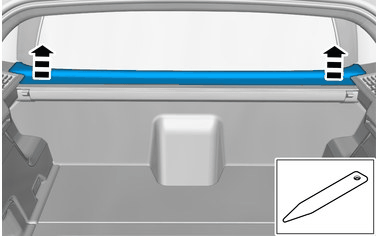

NOTE:

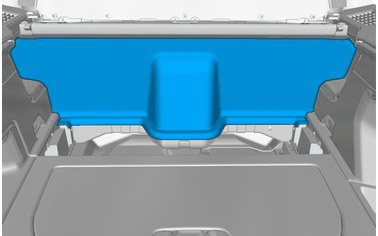

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

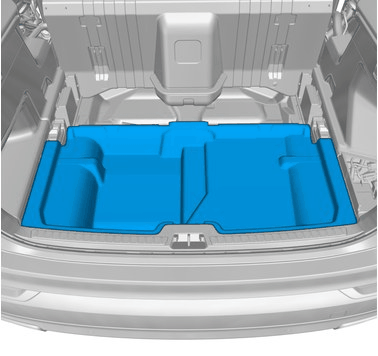

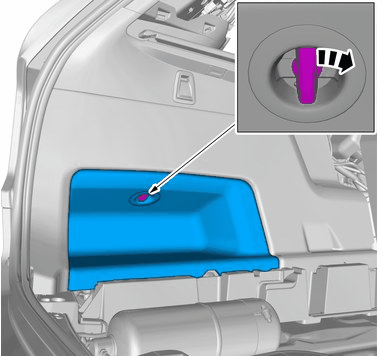

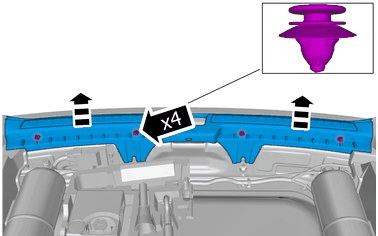

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

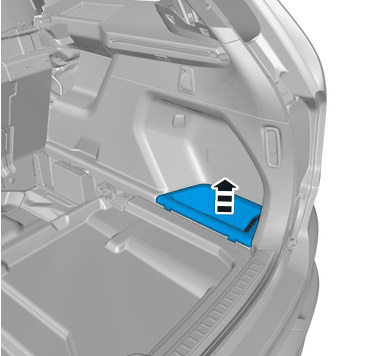

Torque: Refrigerator panel, to Bracket, 6Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the nuts.

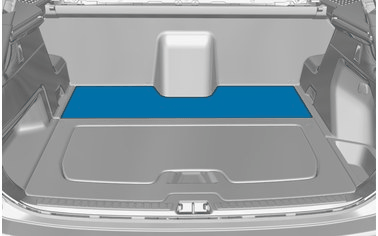

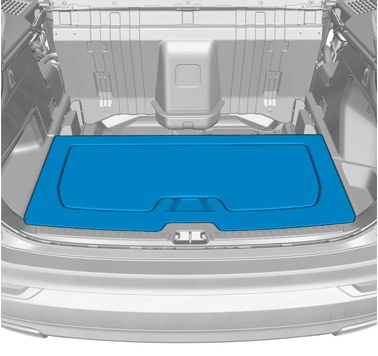

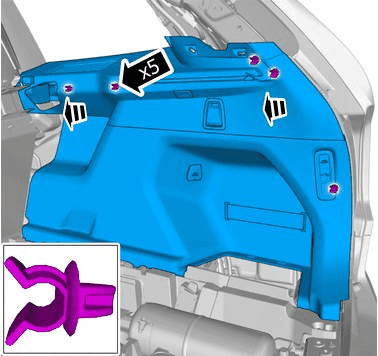

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

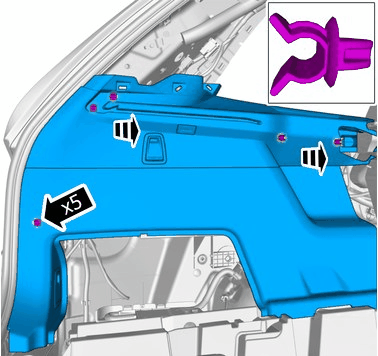

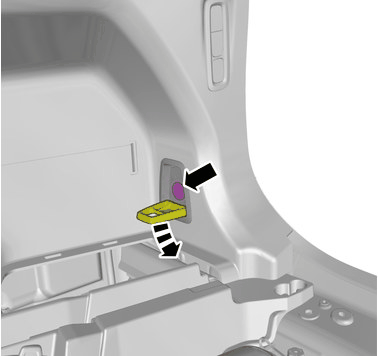

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

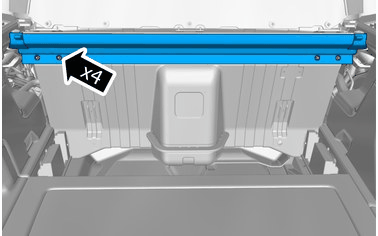

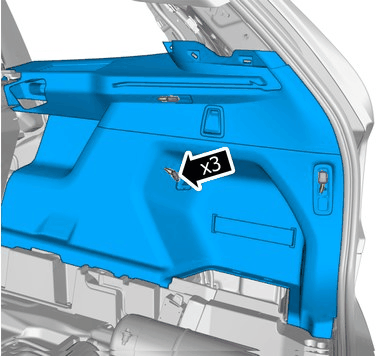

Torque: M6, 10Nm

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

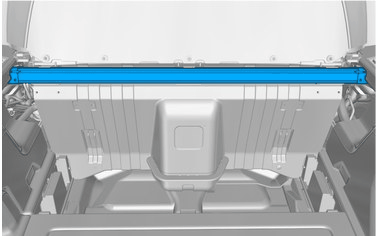

Remove the marked part.

Remove the D-pillar trim panel, refer to: PANEL, D-PILLAR

Courtesy of VOLVO CARS CORPORATION

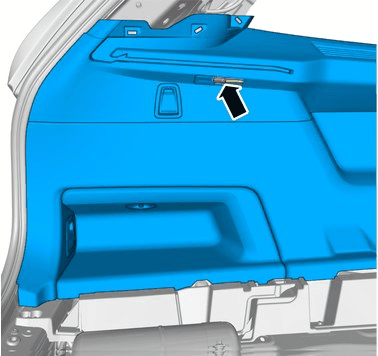

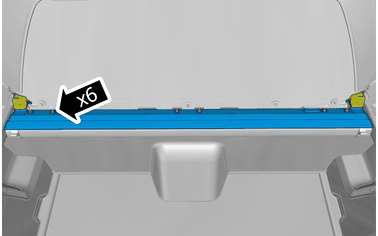

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

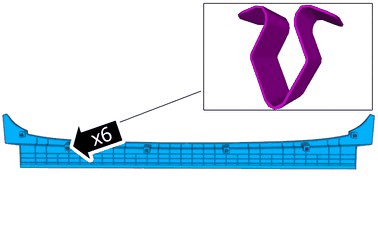

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

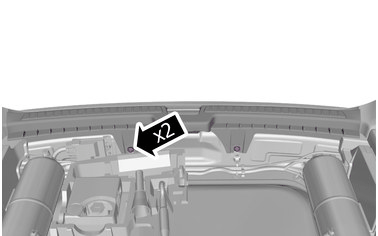

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

Torque: Cargo anchor, to body, 13Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

Remove the marked part.

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connector.

Remove the marked part.

ALL VEHICLES
