Child Safety Seat Release Cable [2016-2020]: Removal

Remove the child seat, refer to: CHILD SAFETY SEAT

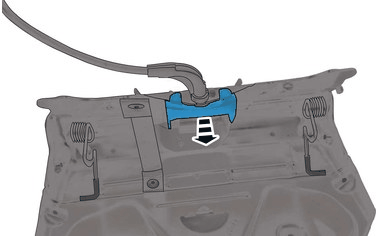

GLL1033871Courtesy of VOLVO CARS CORPORATION

Remove the clip.

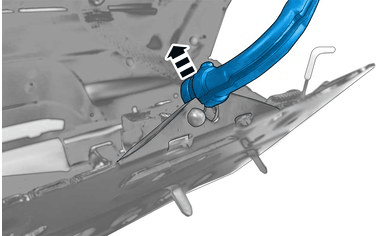

GLL1041889Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

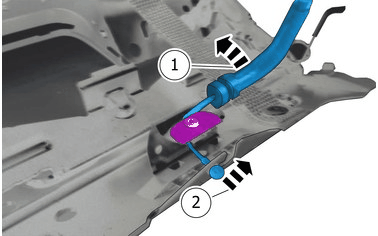

GLL1023109Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
