Backrest Fan, Rear (Excellence) [2017, 2019, 2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove backrest cushion, rear (Excellence), refer to: SEAT BACKREST, REAR

Courtesy of VOLVO CARS CORPORATION

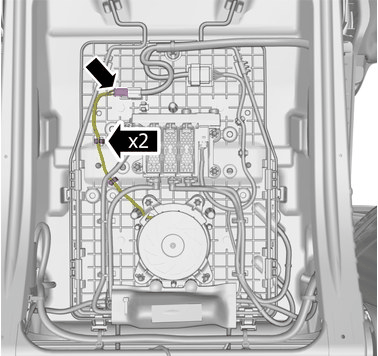

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

Remove the marked part.
