Back Cushion Outer BACKSEAT [2016-2020]: Removal

Remove relevant side seat, second row, refer to: SEAT, SECOND ROW

Remove head restraint, second seat row, refer to: HEAD RESTRAINT, SECOND SEAT ROW

Courtesy of VOLVO CARS CORPORATION

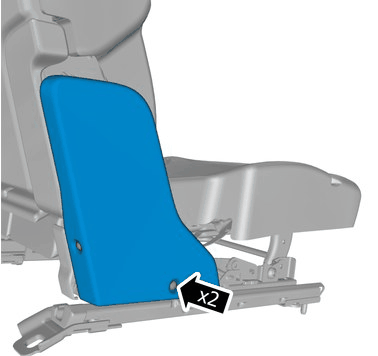

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

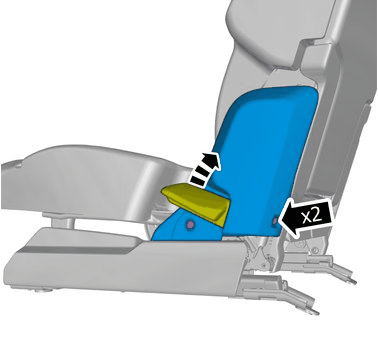

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

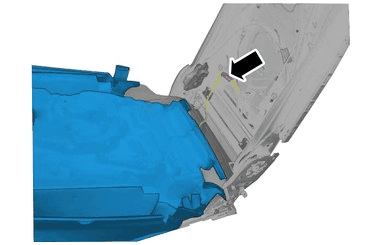

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Use:  Hogring pliers
