Air Pump, Massage Chair [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

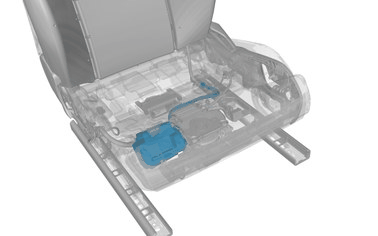

Orientation view

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: Front seat to body, 40Nm

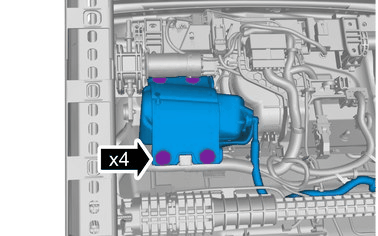

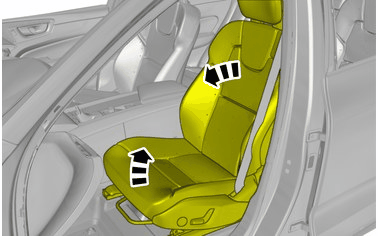

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque: Front seat to body, 40Nm

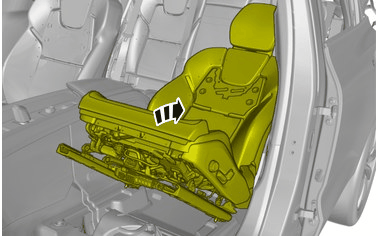

Remove the screws.

Disconnect the battery, refer to: BATTERY

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connector.

Remove the fastener.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

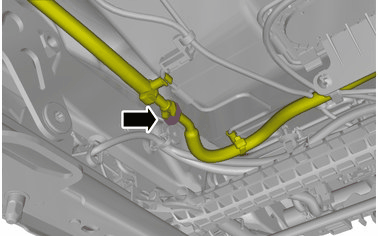

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

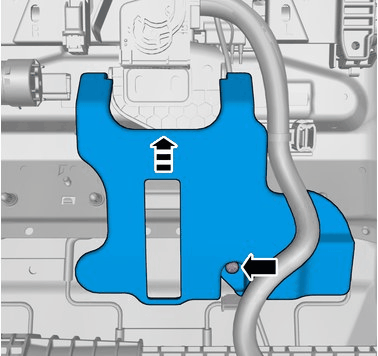

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

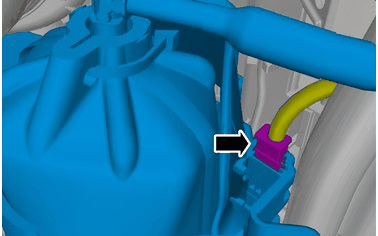

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

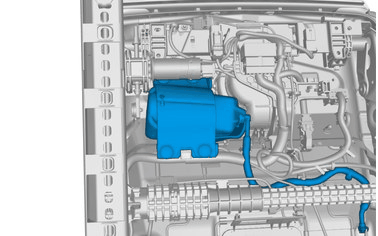

Remove the marked part.
