A-Pillar Trim Panel [2016-2020]: Removal
NOTE:
Removal steps in this procedure may contain installation details.

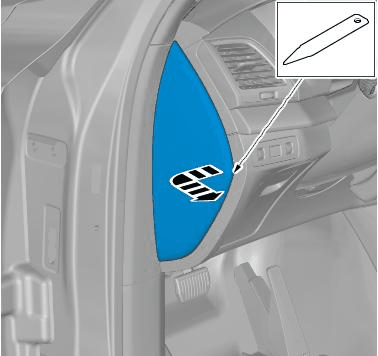

 Courtesy of VOLVO CARS CORPORATION
|
Remove the panel.

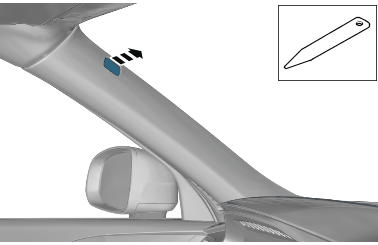

 Courtesy of VOLVO CARS CORPORATION
|
Remove the panel.

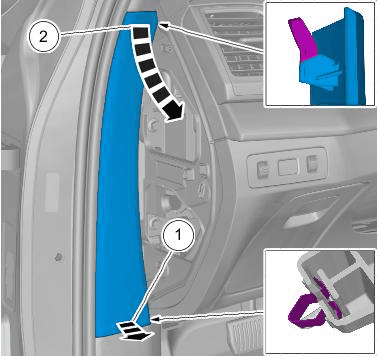

 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.

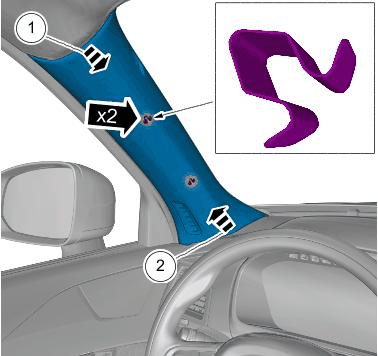

 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure that a new bolt is installed.
Remove the screw.
Torque:
Panel A-pillar, 4.5Nm
 Courtesy of VOLVO CARS CORPORATION
|
Remove the panel.
