Seat Belt Height Adjuster [2016-2019]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

LOCATION OF COMPONENTS

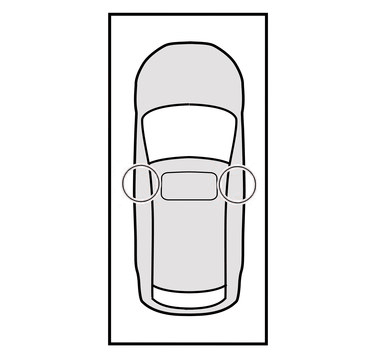

GLL1034544

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Detach panel b-pillar, refer to: B-PILLAR TRIM PANEL

Remove quick-coupling belt, refer to: SAFETY BELT ANCHOR QUICK RELEASE

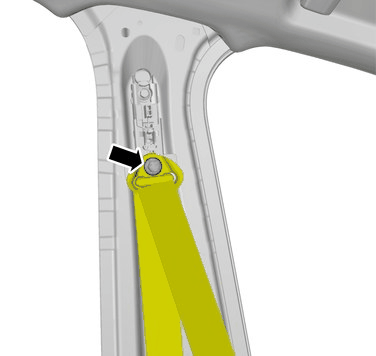

GLL1009330

Courtesy of VOLVO CARS CORPORATION

Torque: Safety belt retractor front to body, 40Nm

Loosen the screws.

Fold marked part aside.

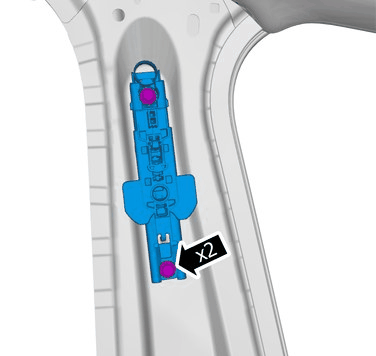

GLL1039882

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Loosen the screws.

Remove the marked part.

GLL1036257

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is installed.

LOCATION OF COMPONENTS

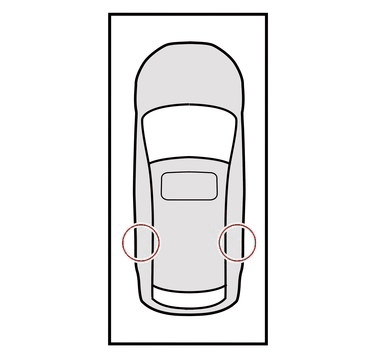

GLL1026640

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Remove the C-pillar trim panel, refer to: C-PILLAR TRIM PANEL

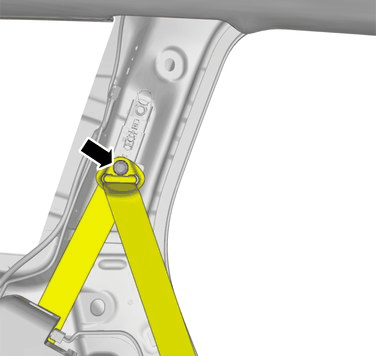

GLL1004282

Courtesy of VOLVO CARS CORPORATION

Torque: Safety belt retractor rear to body, 40Nm

Fold marked part aside.

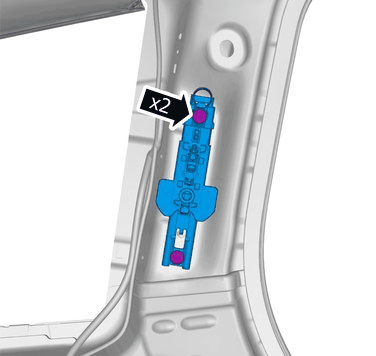

GLL1037825

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Remove the marked part.
