Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

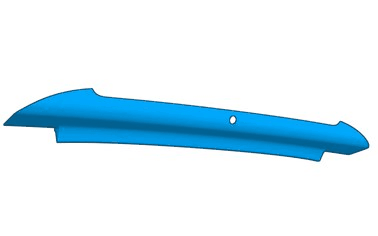

GLL1025276

Courtesy of VOLVO CARS CORPORATION

Make sure to replace the marked component with a new.

Remove seat, rear (excellence), refer to: SEAT, REAR EXCELLENCE)

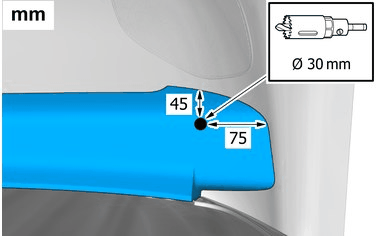

GLL1007048

Courtesy of VOLVO CARS CORPORATION

Use a drill with the stated size

Repeat on the other side.

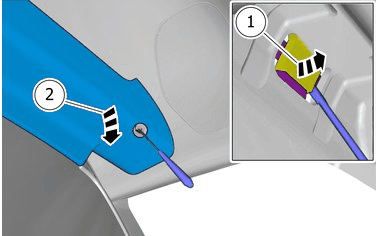

GLL1013869

Courtesy of VOLVO CARS CORPORATION

Release the catch.

Remove the part carefully

Repeat on the other side.

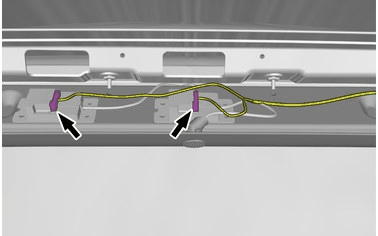

GLL1019107

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

GLL1035489

Courtesy of VOLVO CARS CORPORATION

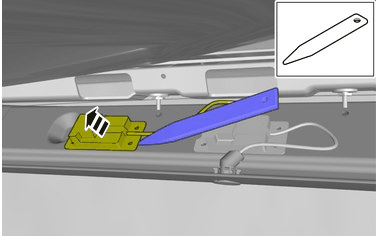

Use: Interior trim remover

Remove the part carefully

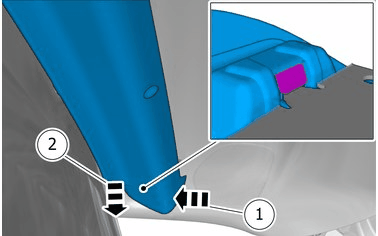

GLL1008776

Courtesy of VOLVO CARS CORPORATION

Repeat on the other side.

Remove the panel.

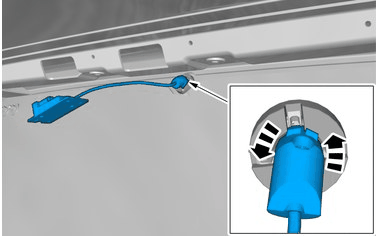

GLL1001425

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

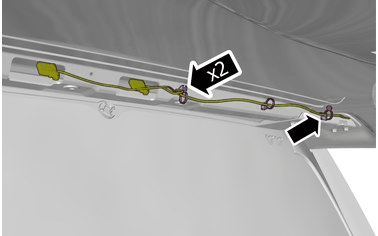

GLL1011842

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

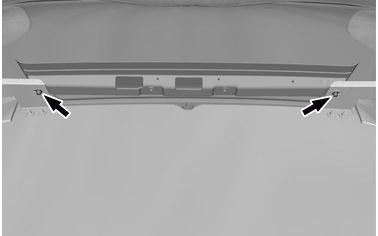

GLL1026185

Courtesy of VOLVO CARS CORPORATION

Torque: Panel, partition wall, for bracket, 8Nm

Remove the screws.

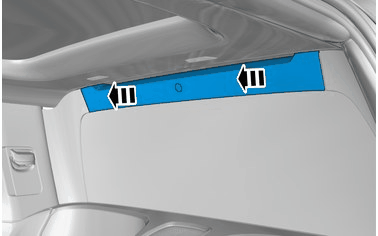

GLL1010888

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

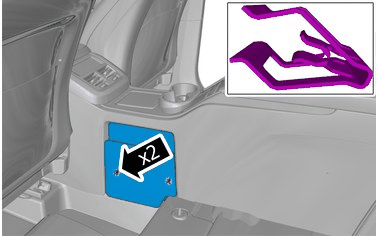

GLL1017768

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

On both sides.

GLL1021537

Courtesy of VOLVO CARS CORPORATION

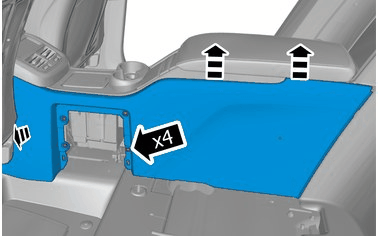

Remove the screws.

Remove the marked part.

On both sides.

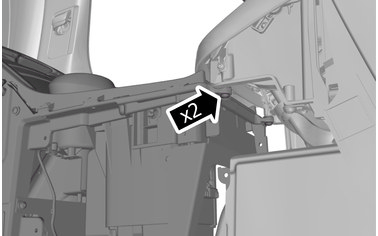

GLL1001979

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

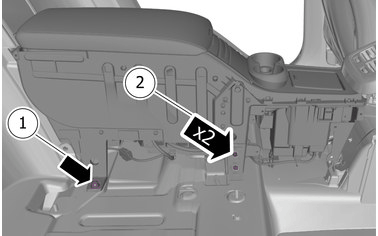

GLL1035861

Courtesy of VOLVO CARS CORPORATION

Torque: Floor console, to Body, 11Nm
Torque: M5, 5Nm

Remove the screws.

On both sides.

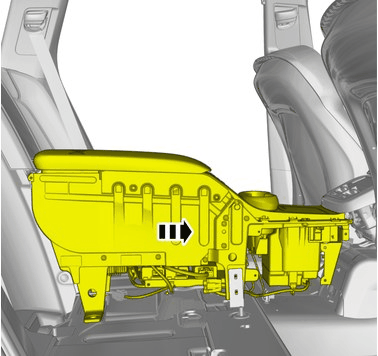

GLL1004501

Courtesy of VOLVO CARS CORPORATION

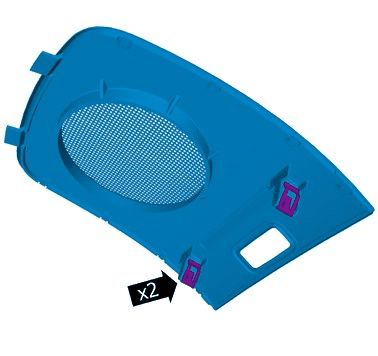

GLL1015432

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

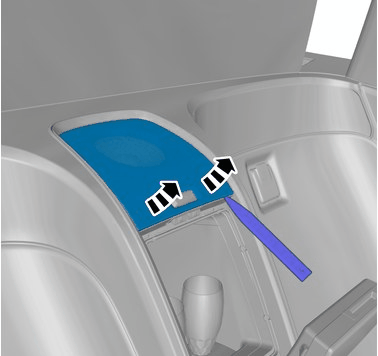

GLL1032515

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

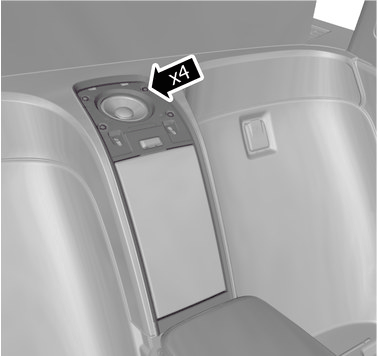

GLL1030016

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1010235

Courtesy of VOLVO CARS CORPORATION

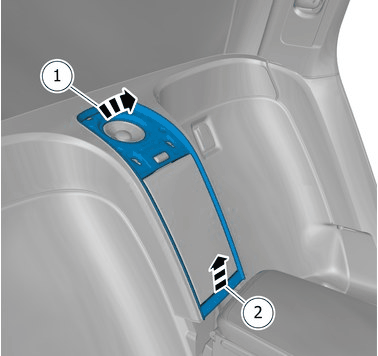

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

Remove the marked part.

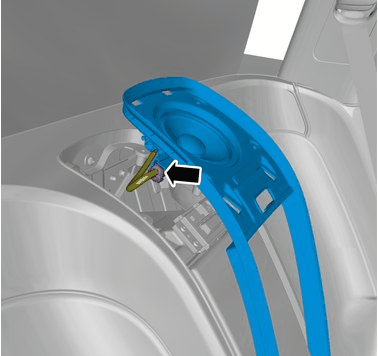

GLL1015599

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

Disconnect the connector.

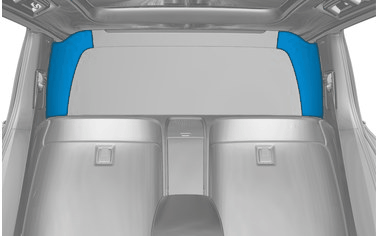

GLL1027205

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

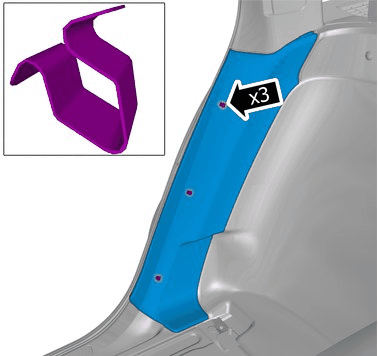

GLL1030523

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

On both sides.

GLL1017798

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1039524

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

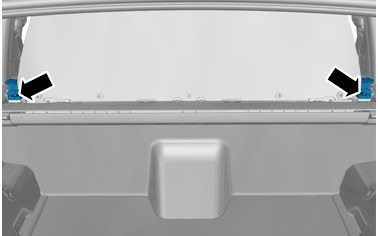

GLL1011458

Courtesy of VOLVO CARS CORPORATION

Torque: Refrigerator panel, to Bracket, 6Nm

Remove the screws.

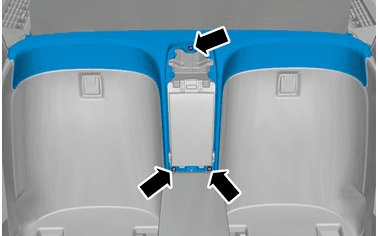

GLL1021049

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

Remove the screws.

Remove the marked part.

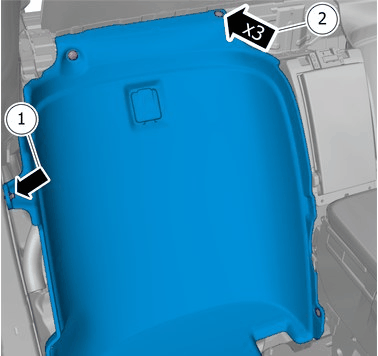

GLL1030036

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screw.

Remove the clips.

Remove the marked part.

On both sides.

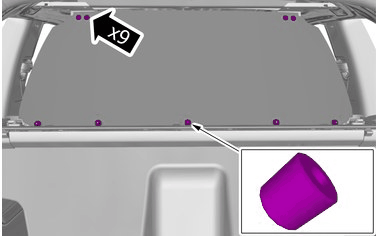

GLL1038046

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the nuts.

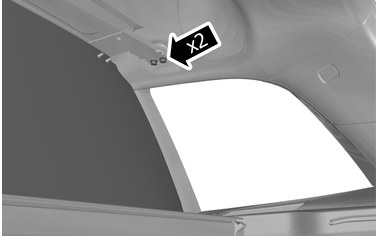

GLL1029775

Courtesy of VOLVO CARS CORPORATION

Torque: Bracket, to Ceiling, 8Nm

Remove the screws.

On both sides.

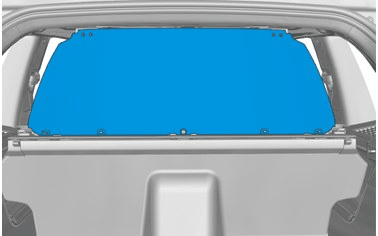

GLL1007734

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1003769

Courtesy of VOLVO CARS CORPORATION

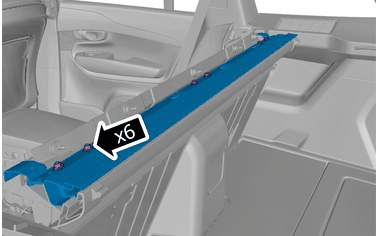

Torque: M6, 10Nm

Remove the nuts.

Remove the marked part.

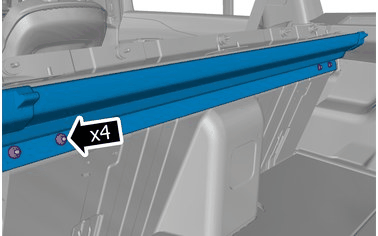

GLL1023155

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the nuts.

Remove the marked part.

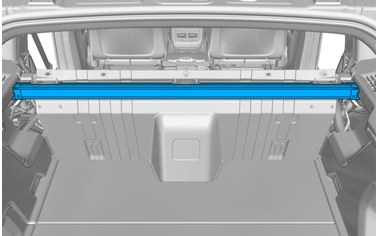

GLL1012104

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

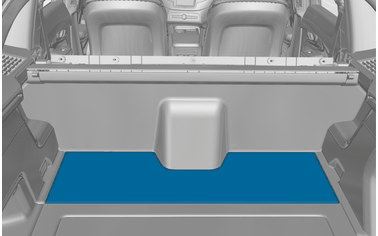

GLL1018104

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

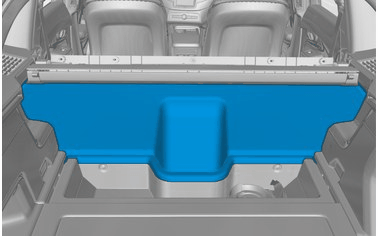

GLL1037163

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1022638

Courtesy of VOLVO CARS CORPORATION

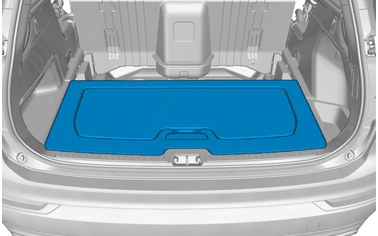

Remove the marked part.

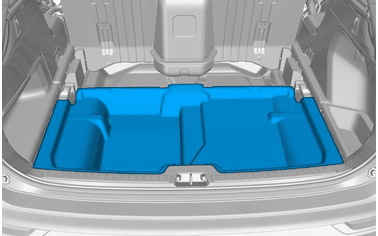

GLL1027689

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Remove side panel cargo compartment (excellence), refer to: LOAD SPACE SIDE PANEL

APPLIES TO THE RIGHT-HAND SIDE

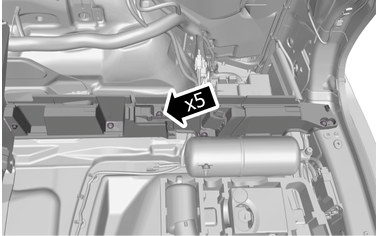

GLL1037628

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1010316

Courtesy of VOLVO CARS CORPORATION

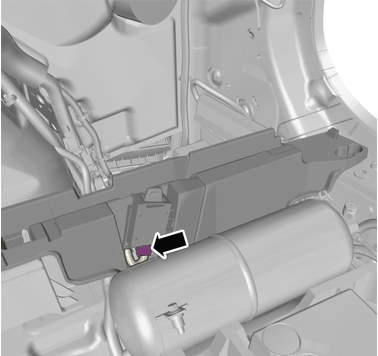

Disconnect the connector.

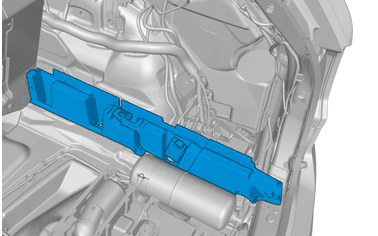

GLL1040640

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

APPLIES TO THE LEFT-HAND SIDE:

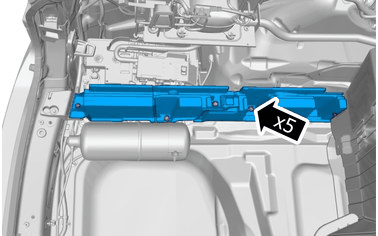

GLL1008948

Courtesy of VOLVO CARS CORPORATION

Torque: Load floor support, to Body, 6Nm

Remove the screws.

Remove the marked part.

ALL VEHICLES

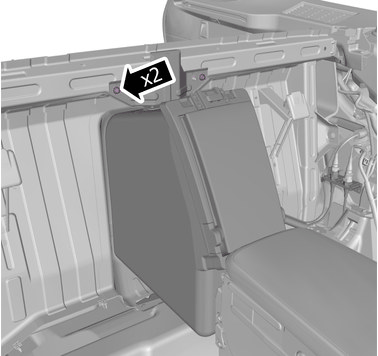

GLL1000508

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screws.

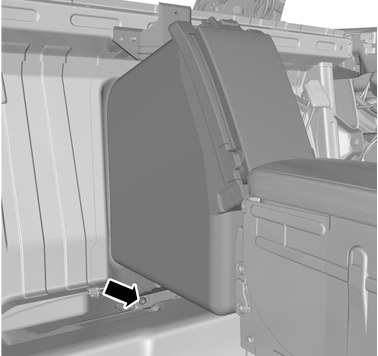

GLL1011684

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

On both sides.

Remove the screw.

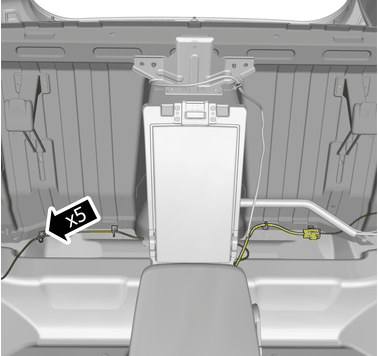

GLL1028132

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

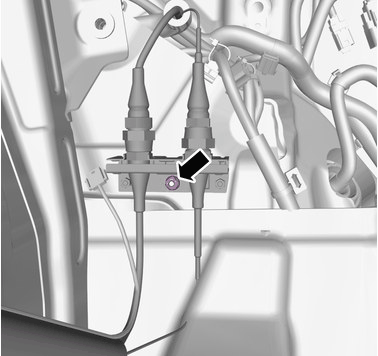

GLL1041760

Courtesy of VOLVO CARS CORPORATION

Torque: M5, 5Nm

Remove the nut.

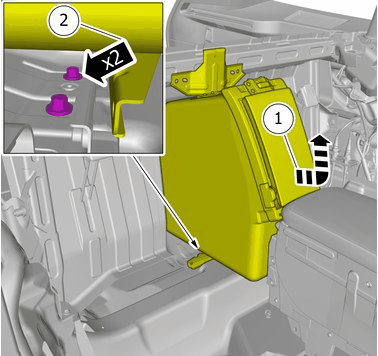

GLL1009821

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

Torque: Partition wall, to Body, 40Nm

Remove the screws.

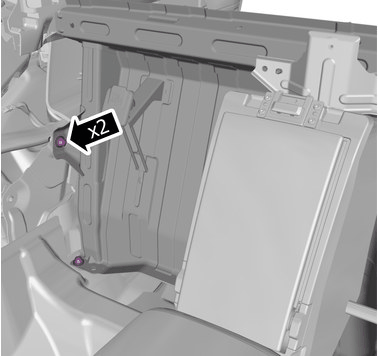

GLL1028941

Courtesy of VOLVO CARS CORPORATION

Torque: Partition wall, to Body, 40Nm

On both sides.

Remove the screws.

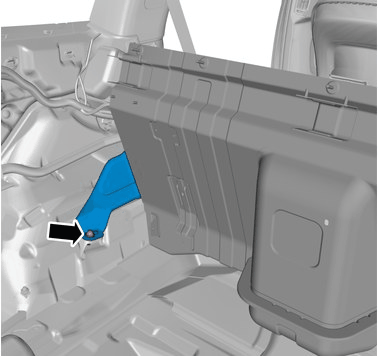

GLL1024111

Courtesy of VOLVO CARS CORPORATION

Torque: Partition wall, to Body, 40Nm

Remove the screw.

On both sides.

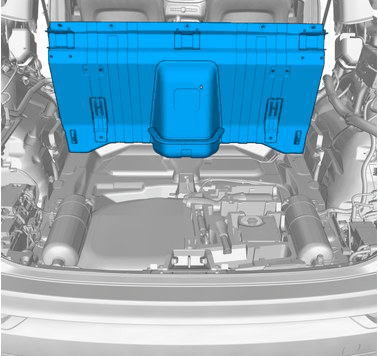

GLL1021794

Courtesy of VOLVO CARS CORPORATION

WARNING:

This step requires the aid of another technician.

Remove the marked part.

TRANSFERRING COMPONENTS

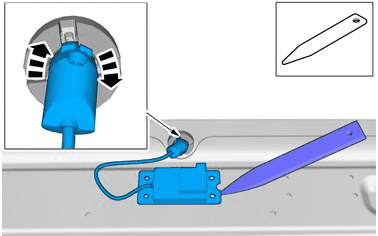

GLL1032054

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

The item is to be reused.

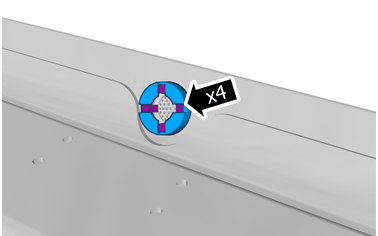

GLL1034268

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

The item is to be reused.

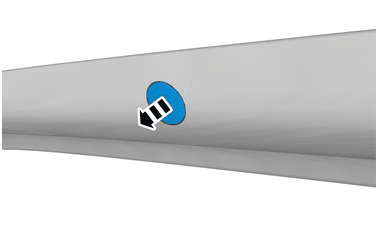

GLL1013802

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

The item is to be reused.

GLL1025023

Courtesy of VOLVO CARS CORPORATION

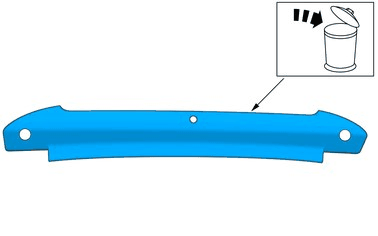

The part is not to be reused.

Make sure to replace the marked component with a new.

INSTALLATION

GLL1003569

Courtesy of VOLVO CARS CORPORATION

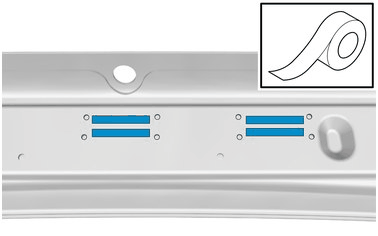

Use: Double-sided tape, 31299109

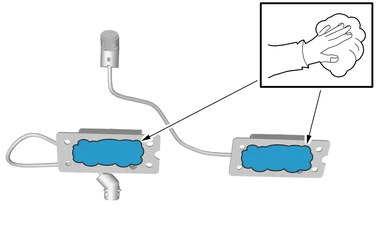

GLL1018889

Courtesy of VOLVO CARS CORPORATION

Remove any tape or tape residue.

Clean the marked area.

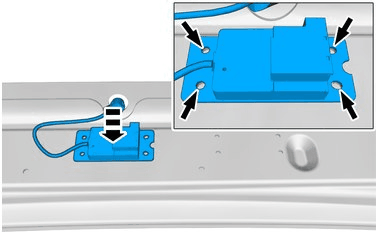

GLL1040738

Courtesy of VOLVO CARS CORPORATION

Note position of components.

Install the marked component.

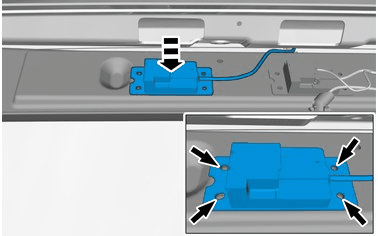

GLL1034136

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

To install, reverse the removal procedure.
