Outer Panel Lounge Console (Excellence) [2019-2020, B4204T28]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove Lounge Console (Excellence), refer to: LOUNGE CONSOLE (EXCELLENCE)

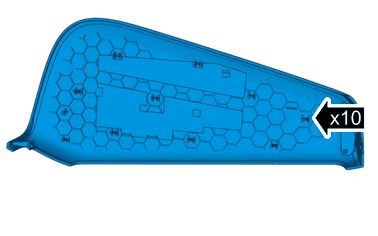

NOTE:
The graphic shows the back of the component before removal.

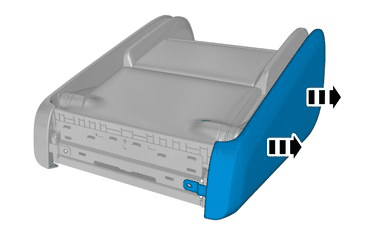

Remove the marked part.

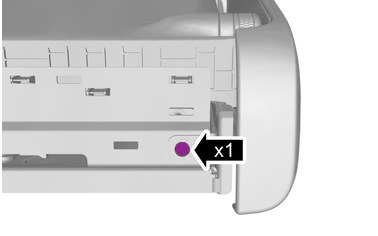

Remove the screw.
Torque: M6, 10Nm

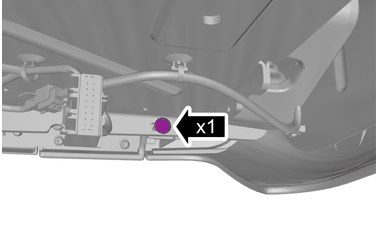

Remove the screw.
Torque: M6, 10Nm

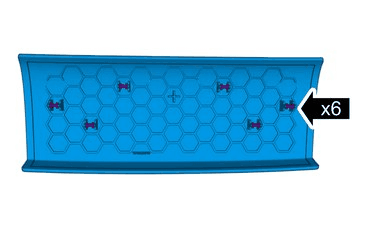

NOTE:
The graphic shows the back of the component before removal.
CAUTION:
Observe caution when carrying out this step.

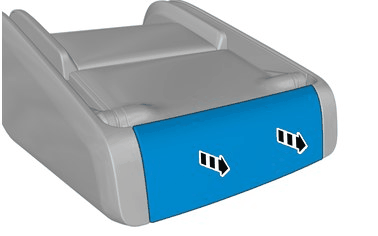

Remove the marked part.
