Glove Compartment [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

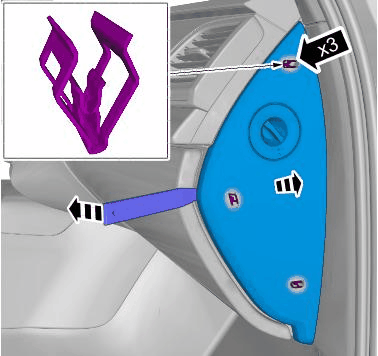

GLL1016762

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

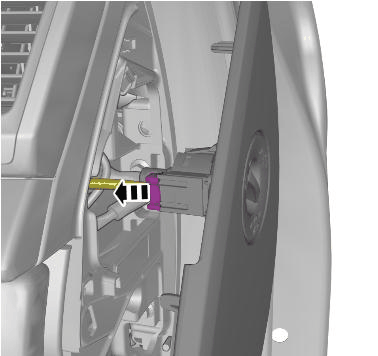

GLL1008344

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

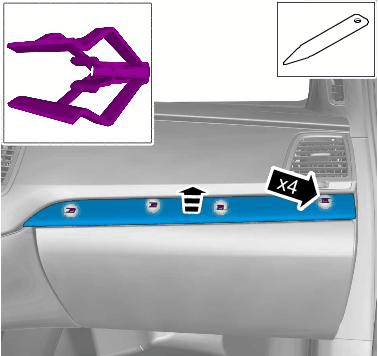

GLL1034561

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

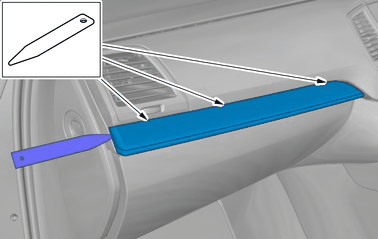

VEHICLES WITH DECOR ILLUMINATION

GLL1028312

Courtesy of VOLVO CARS CORPORATION

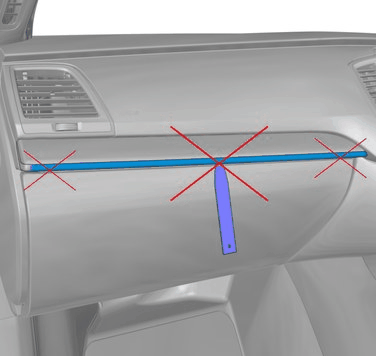

GLL1007681

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

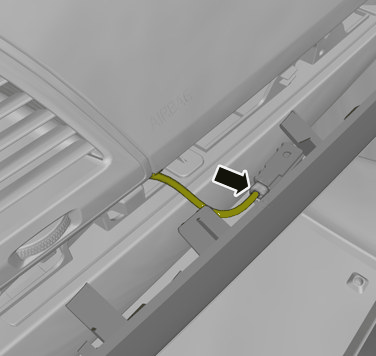

GLL1032927

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

ALL VEHICLES

GLL1022816

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the panel.

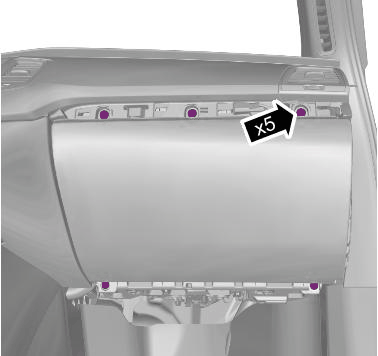

GLL1020971

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

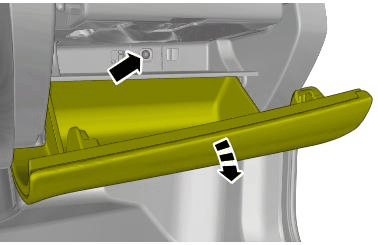

GLL1036395

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M5, 5Nm

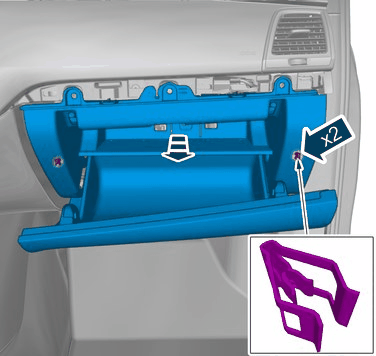

GLL1019232

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

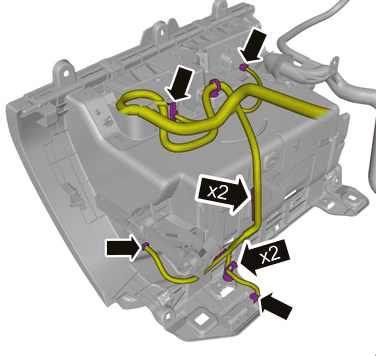

GLL1022844

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Loosen the clips.

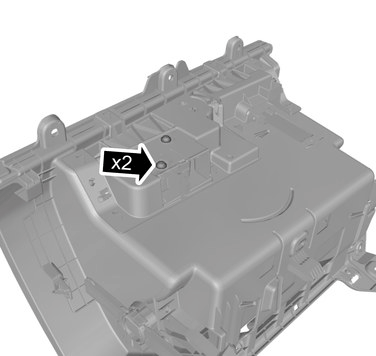

GLL1007349

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

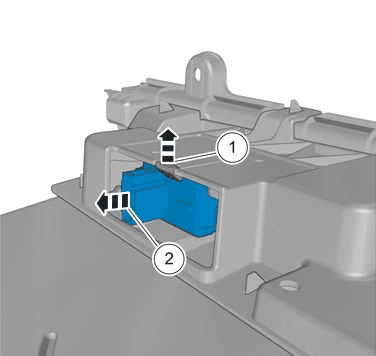

GLL1027254

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

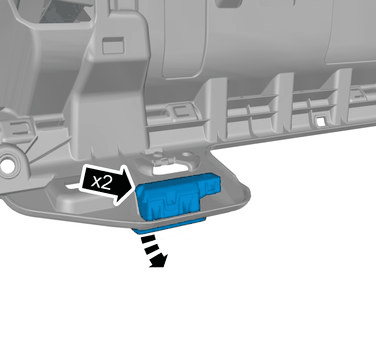

GLL1013725

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

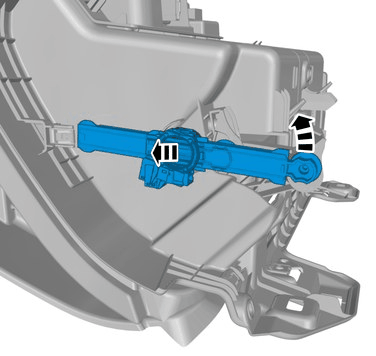

GLL1037702

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH GLOVE COMPARTMENT COOLING

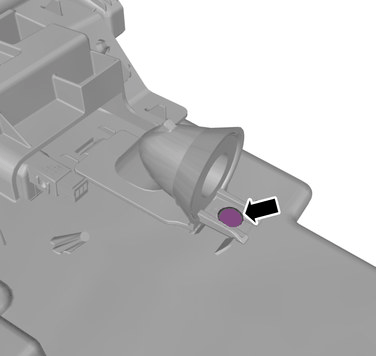

GLL1022227

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

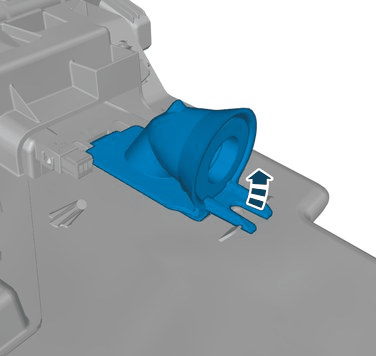

GLL1026074

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
