Glove Compartment Lid [2016-2020]: Removal

Remove glove compartment, refer to: GLOVE COMPARTMENT

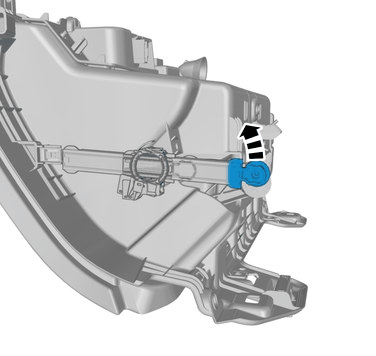

GLL1008355Courtesy of VOLVO CARS CORPORATION

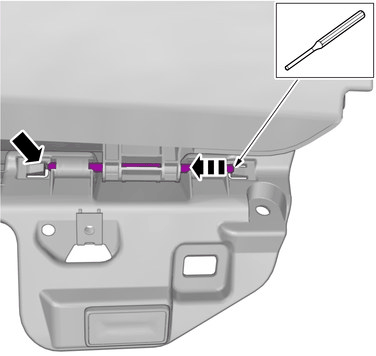

GLL1019968Courtesy of VOLVO CARS CORPORATION

Use:  Drift

On both sides.

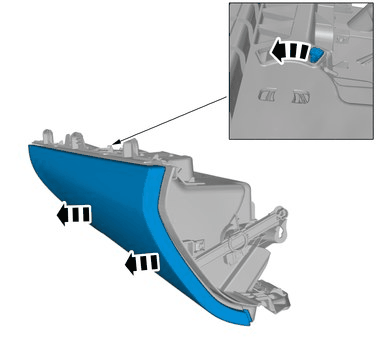

GLL1011559Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
