Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS

See information regarding the handling of non-deployed pyrotechnical parts, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Courtesy of VOLVO CARS CORPORATION

NOTE:

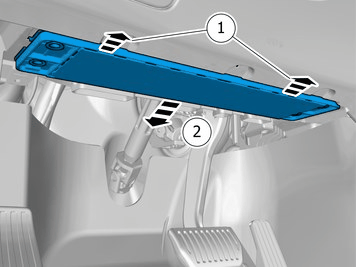

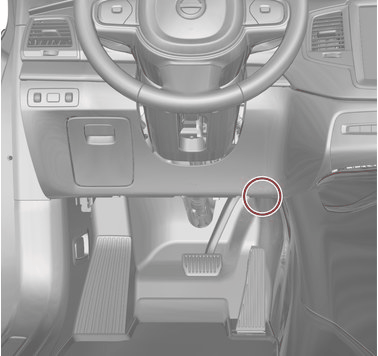

Orientation view

Courtesy of VOLVO CARS CORPORATION

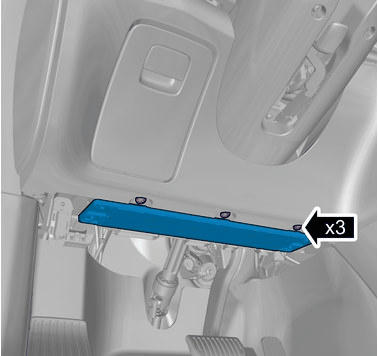

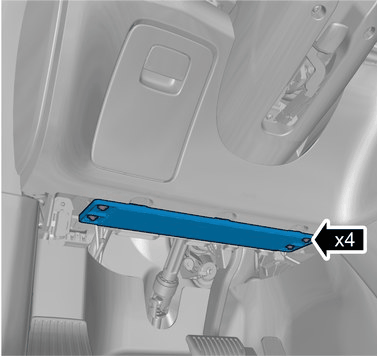

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

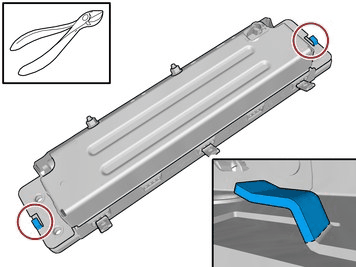

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque: Airbag to bracket, 5.5Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Disconnect the connector ignition cable, refer to: IGNITER WIRE CONNECTOR

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

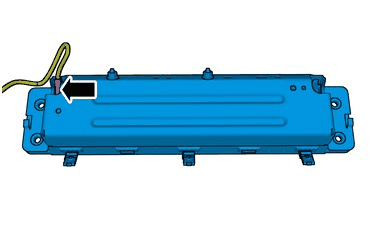

Disconnect the connector.

Remove the marked part.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

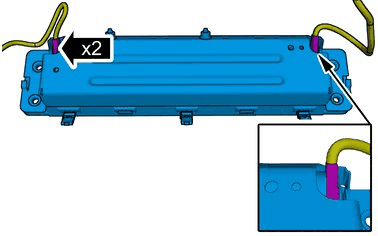

Disconnect the connectors.

Remove the marked part.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

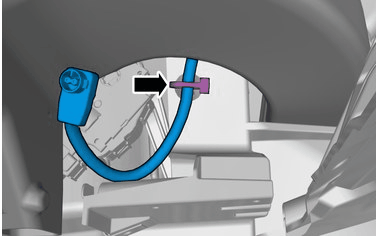

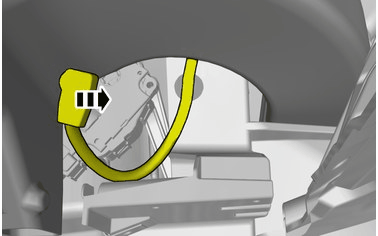

Remove the cable tie(s).

Courtesy of VOLVO CARS CORPORATION

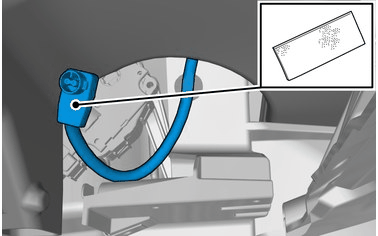

Put the tape around the cable.

Use: Tape, 1161776

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the wire or wiring harness cannot rub against adjacent components.

Position wire as illustrated.

Use: Strip clamp, 983747

To install, reverse the removal procedure.

ALTERNATIVE 3

Courtesy of VOLVO CARS CORPORATION

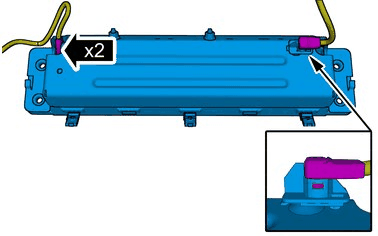

Disconnect the connectors.

Remove the marked part.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

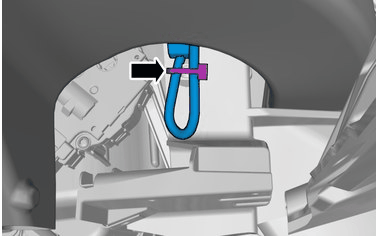

Remove the cable tie(s).

Courtesy of VOLVO CARS CORPORATION

Put the tape around the cable.

Use: Tape, 1161776

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the wire or wiring harness cannot rub against adjacent components.

Position wire as illustrated.

Use: Strip clamp, 983747

To install, reverse the removal procedure.

Order and download the appropriate Volvo software.

ALL VEHICLES

Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
