Driver's Airbag [2016-2020]: Removal

Follow instructions about safety information pyrotechnical system, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS

See information regarding the handling of non-deployed pyrotechnical parts, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART

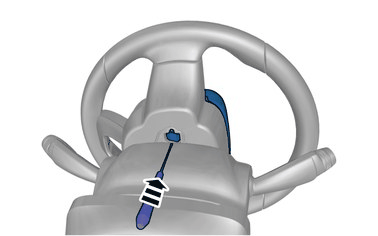

Courtesy of VOLVO CARS CORPORATION

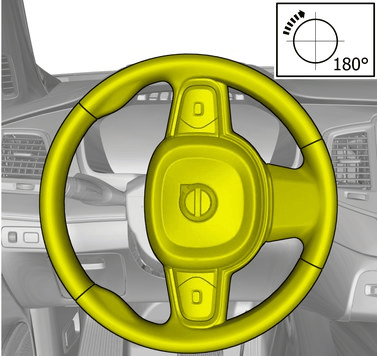

Courtesy of VOLVO CARS CORPORATION

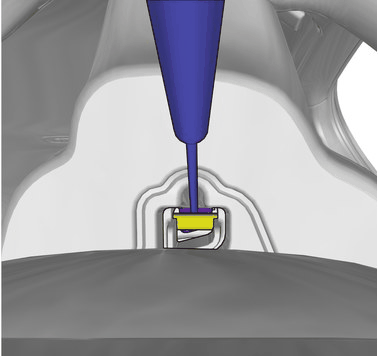

Courtesy of VOLVO CARS CORPORATION

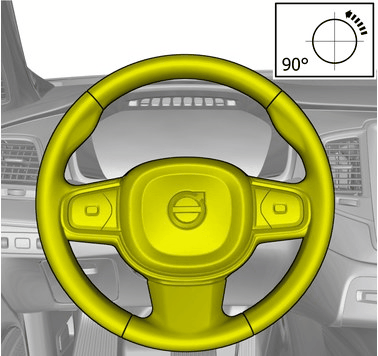

Courtesy of VOLVO CARS CORPORATION

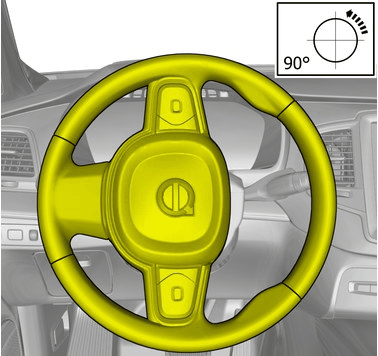

Courtesy of VOLVO CARS CORPORATION

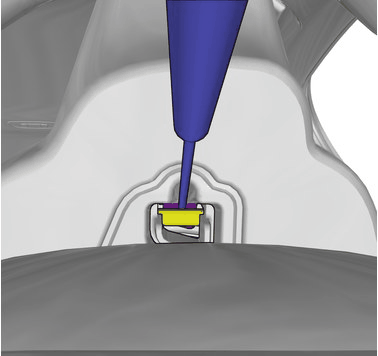

Courtesy of VOLVO CARS CORPORATION

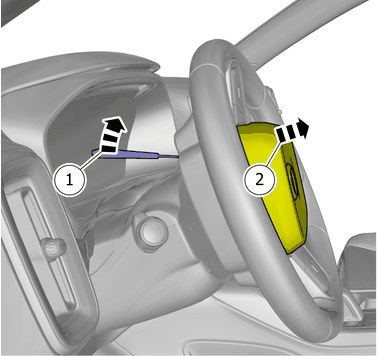

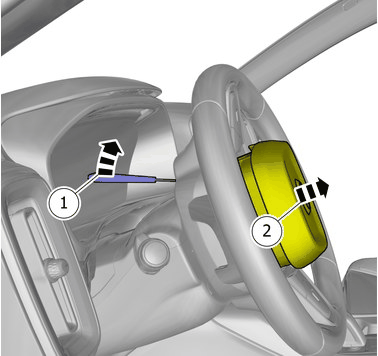

1. Release the catch.
2. Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

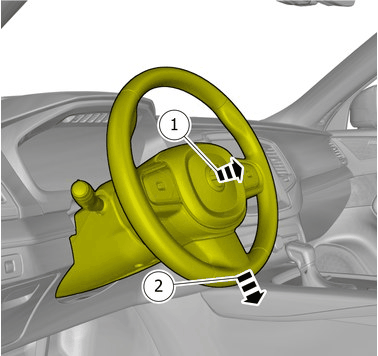

1. Release the catch.
2. Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.
