Air Bag, Front Seat [2016-2020]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information pyrotechnical system, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
See information regarding the handling of non-deployed pyrotechnical parts, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

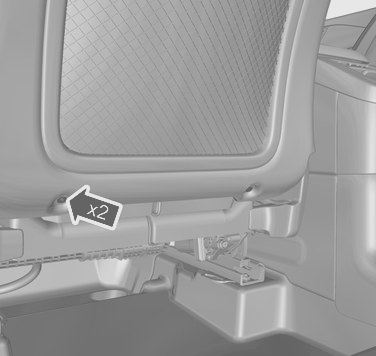

Loosen the screws.

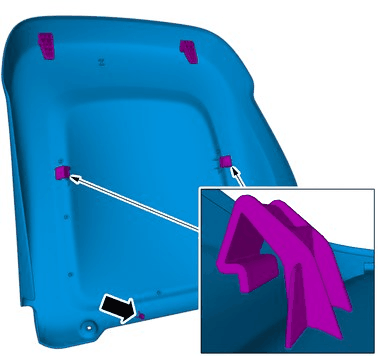

The graphic shows the back of the component before removal.

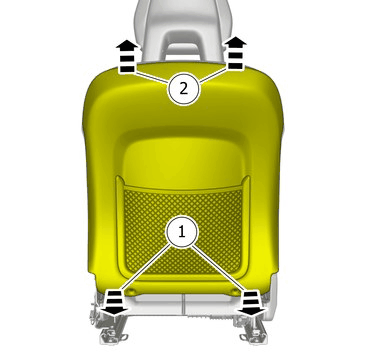

Remove the marked part.

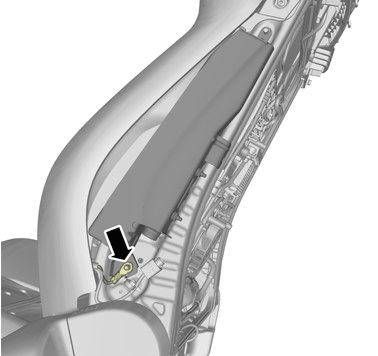

Disconnect connector ignition cable, refer to: IGNITER WIRE CONNECTOR

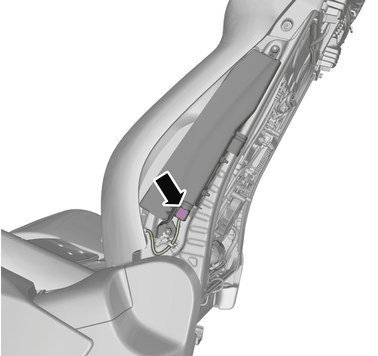

Disconnect the connector.

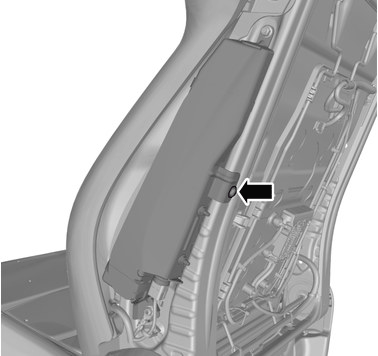

Remove the screw.

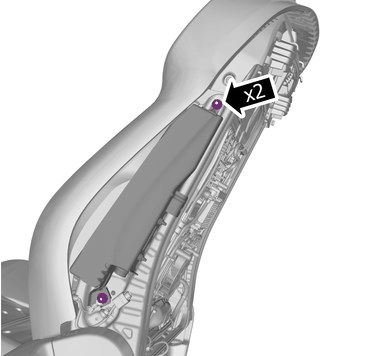

Remove the nuts.
Torque: Air bag to seat (SIPS), 6Nm
Fold marked part aside.

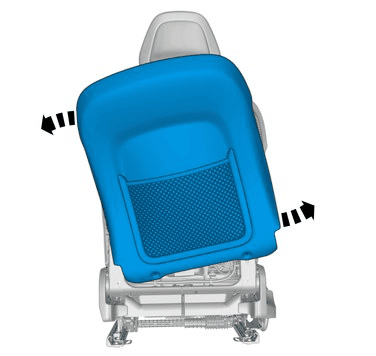

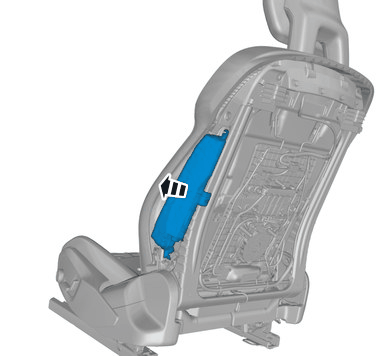

Remove the marked part.
