Luggage Compartment Lamp, Side [2016-2020]: Removal

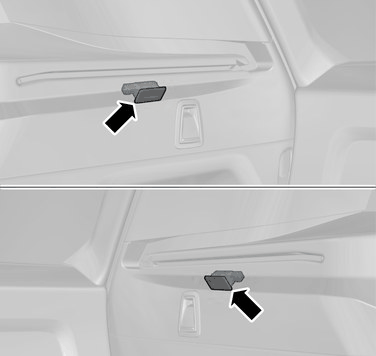

GLL1001326Courtesy of VOLVO CARS CORPORATION
NOTE:

Orientation view

Remove relevant side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

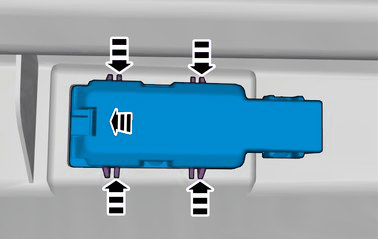

GLL1004817Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
