Vibration Damper [2018-2020, B4204T23 | 2018-2020, B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

Remove the auxiliary drive belt, refer to: AUXILIARY DRIVE BELT

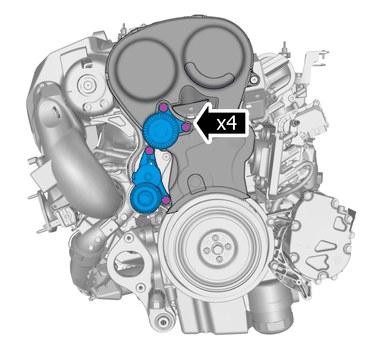

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked detail/details.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M6, 10Nm

Remove the marked part.

Remove right front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Remove the clip.

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

Remove blind rivet.

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Lower to suitable height.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7495

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 115 9079

Remove the screws.

Remove the Special Tool.

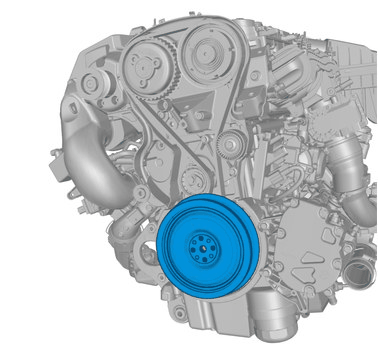

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
