Auxiliary Drive Belt [2016-2020, B4204T28 | 2020, B4204T39]: Removal

Remove engine pad right, refer to: ENGINE PAD RIGHT

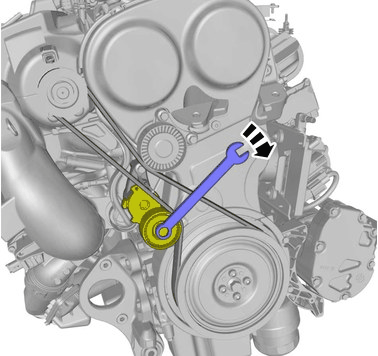

GLL1032413

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to turn the component until stop.

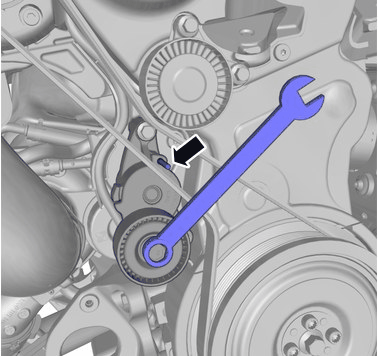

GLL1026129

Courtesy of VOLVO CARS CORPORATION

Use: Pin 3 mm

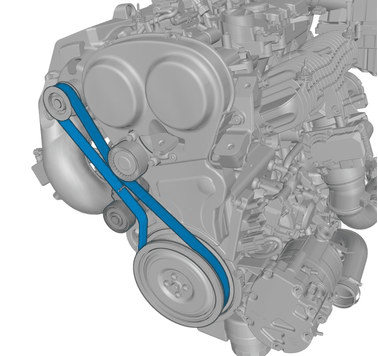

GLL1026078

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
