Auxiliary Drive Belt [2016-2020, B4204T23]: Removal

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Remove engine pad right, refer to: ENGINE PAD RIGHT

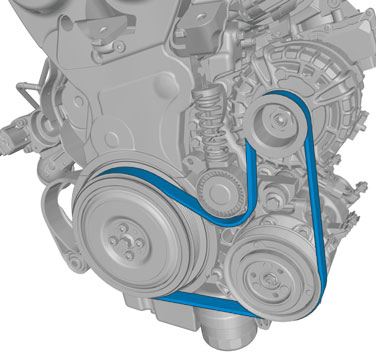

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

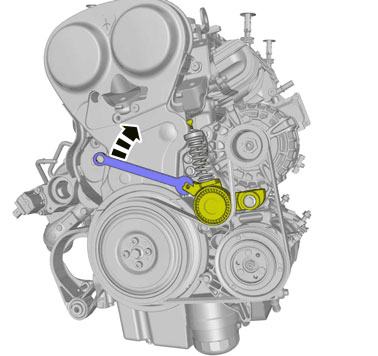

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to turn the component until stop.

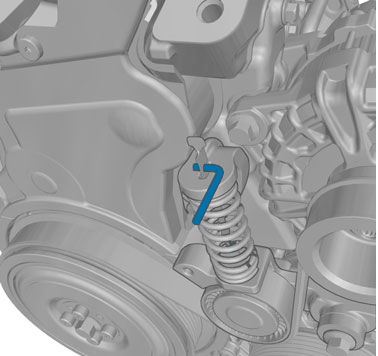

Courtesy of VOLVO CARS CORPORATION

Use: Pin 3 mm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
