Auxiliary Drive Belt TENSIONER [2016-2020, B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the auxiliary drive belt, refer to: AUXILIARY DRIVE BELT

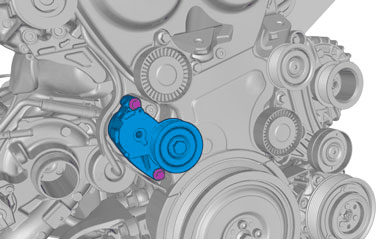

GLL1040162Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm
