Emergency Opening Of Hood [2016-2018]: Removal

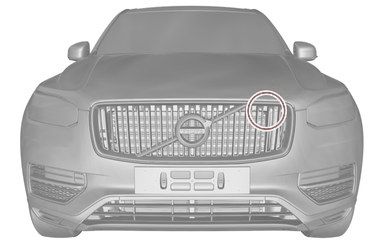

GLL1005186

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1037388

Courtesy of VOLVO CARS CORPORATION

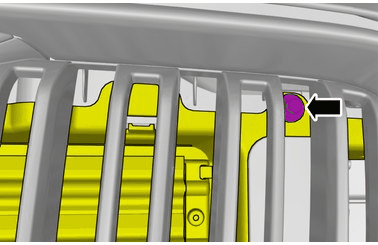

Remove the screw.

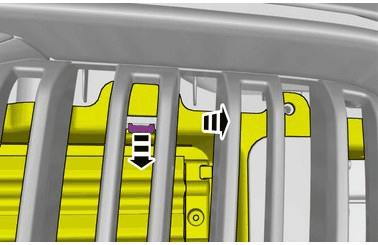

GLL1017065

Courtesy of VOLVO CARS CORPORATION

Release the catch.

Fold marked part aside.

Remove the wheel, refer to: WHEELS

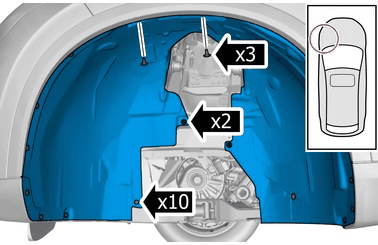

GLL1016559

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the nuts.

Remove the screws.

Remove the marked part.

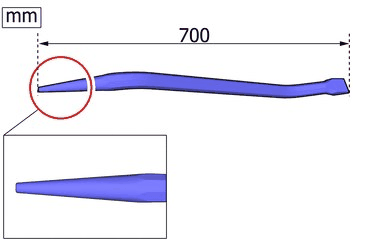

GLL1002968

Courtesy of VOLVO CARS CORPORATION

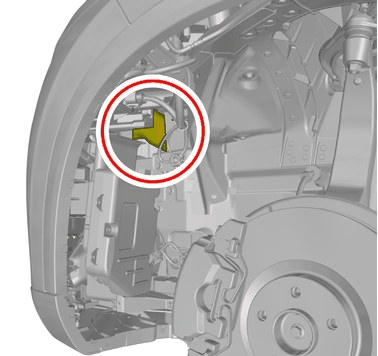

GLL1036949

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

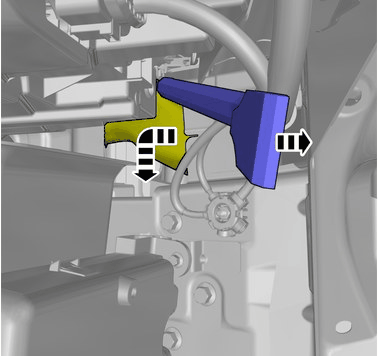

GLL1029098

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

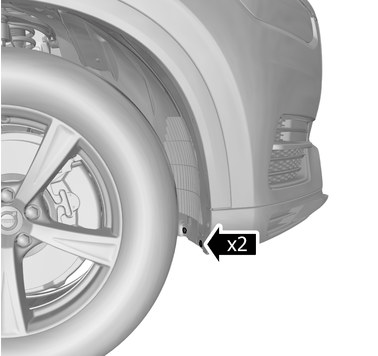

GLL1033773

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

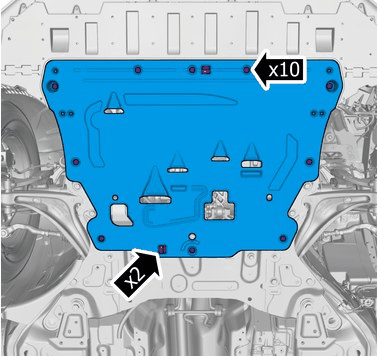

GLL1007355

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the screws.

Remove the marked part.

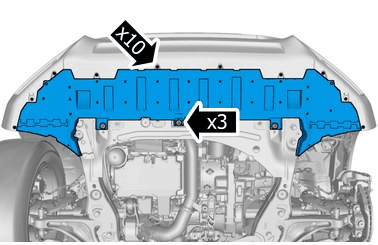

GLL1027665

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the screws.

Remove the marked part.

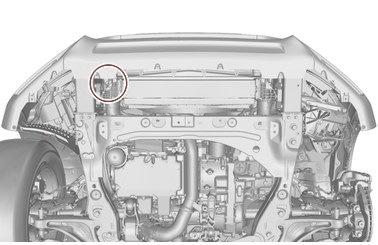

GLL1022266

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

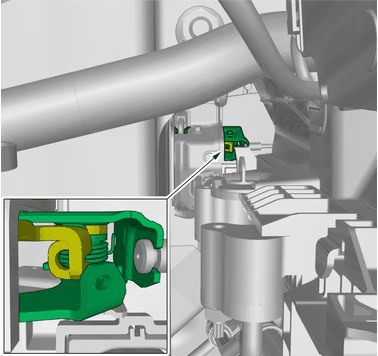

GLL1040388

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

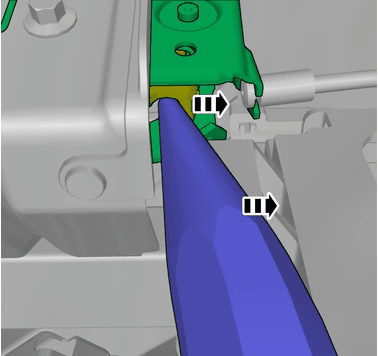

GLL1040076

Courtesy of VOLVO CARS CORPORATION

Release the lock.

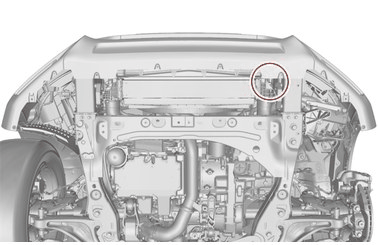

GLL1030005

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

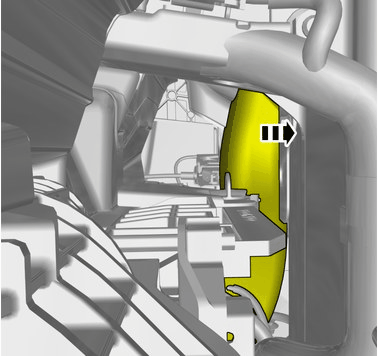

GLL1002888

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

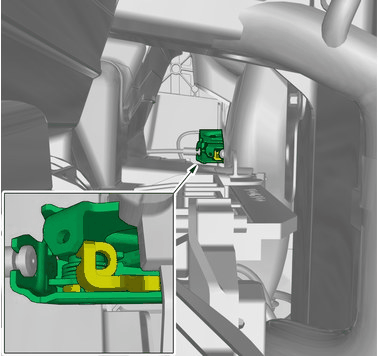

GLL1038468

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

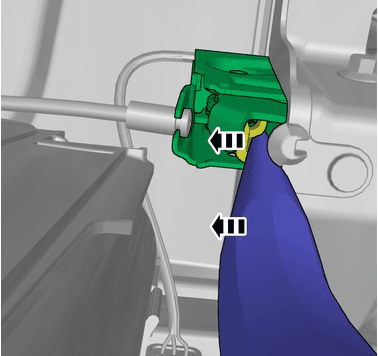

GLL1015601

Courtesy of VOLVO CARS CORPORATION

Release the lock.
