Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

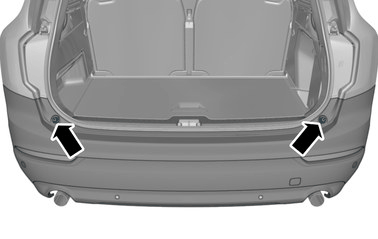

Remove the marked part.

Remove fender extension rear, refer to: REAR FENDER WIDENER

Courtesy of VOLVO CARS CORPORATION

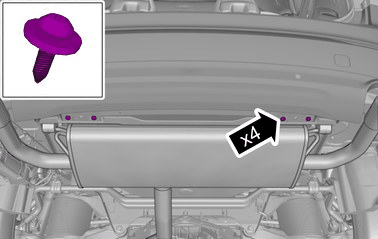

Remove the screws.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

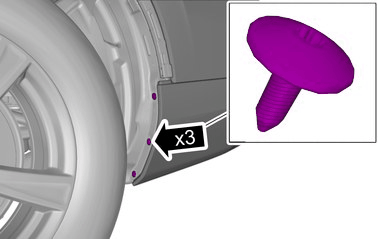

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

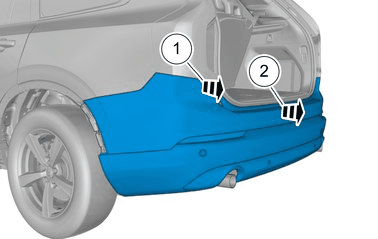

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

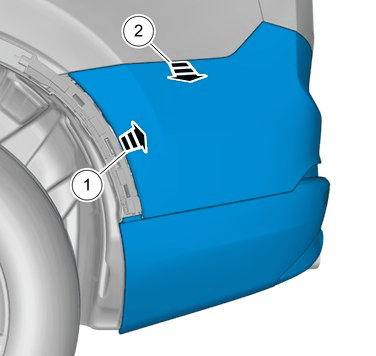

Courtesy of VOLVO CARS CORPORATION

CAUTION:

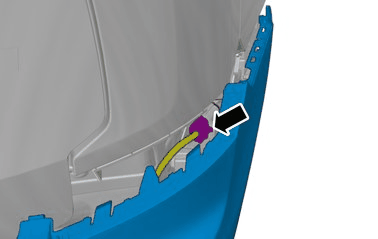

Make sure that no part of the wiring harness is trapped.

Disconnect the connector.

TRANSFERRING COMPONENTS

If necessary

Perform cover bumper rear, transferring components, refer to: REAR BUMPER COVER, TRANSFERRING COMPONENTS

INSTALLATION

To install, reverse the removal procedure.
