Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Loosen the component indicated. Do not remove it.

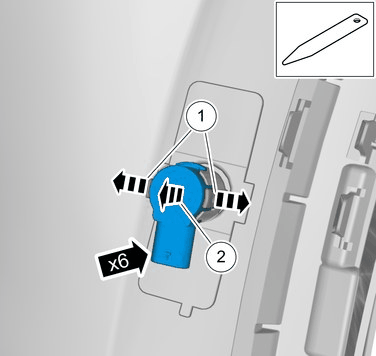

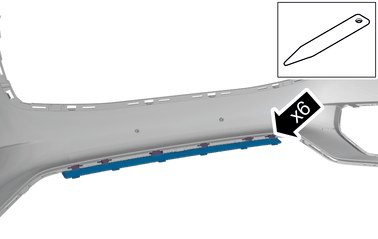

Remove the clips.
Repeat on the other side.
Remove the clips.
Remove the front wheels, refer to: WHEELS

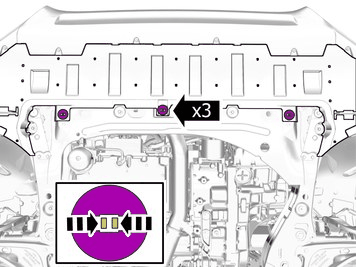

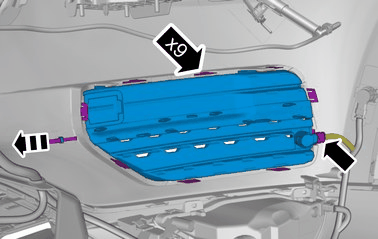

Remove the clips.
Loosen the screws.
On both sides.
Remove the nut.
On both sides.
Fold the wing liner aside.
On both sides.
Take extra care when handling the component.
On both sides.
On both sides.
VEHICLES EARLY VERSION
Remove the screws.
Repeat on the other side.
Torque: Bracket to front fender, 6Nm
VEHICLES LATE VERSION
Remove the screws.
Repeat on the other side.
Torque: Bracket to front fender, 6Nm
ALL VEHICLES
The number of connectors, cables and cable ties may vary depending on the vehicle specification.

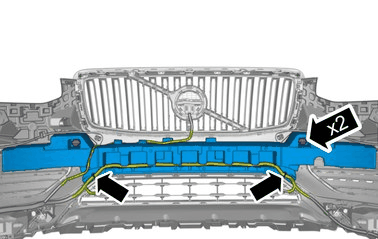

Disconnect the connectors.

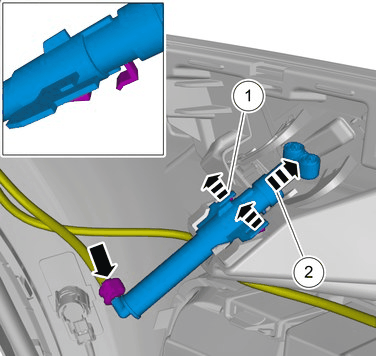

VEHICLES WITH HEADLAMP WASHERS
Be prepared to collect escaping fluid.
Undo the hose from the connection.
ALL VEHICLES

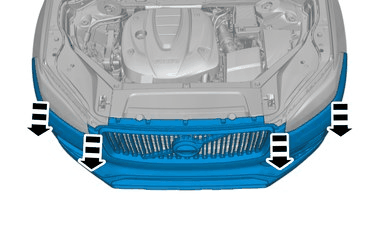

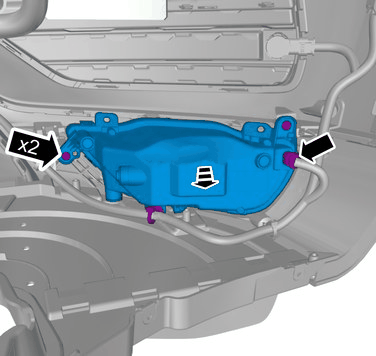

Remove the marked part.
Remove the clips.

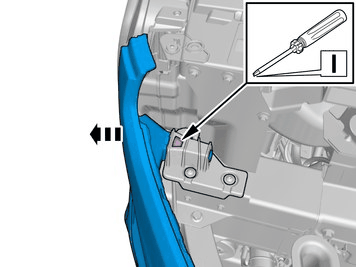

Release the catch.
On both sides.

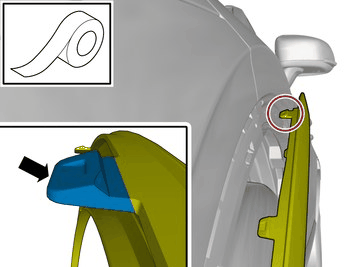

Make sure that the sharp edge does not damage the surrounding component.
This step requires the aid of another technician.
TRANSFERRING COMPONENTS
On both sides.
On both sides.
Remove the fastener.

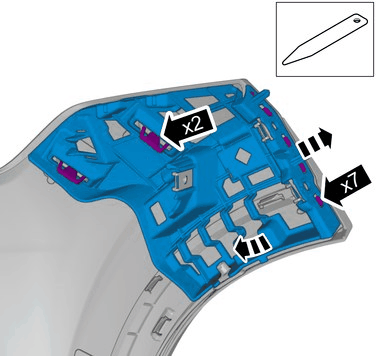

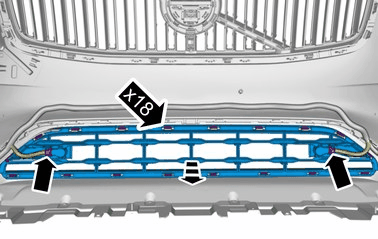

Remove the marked part.
Remove the screws.

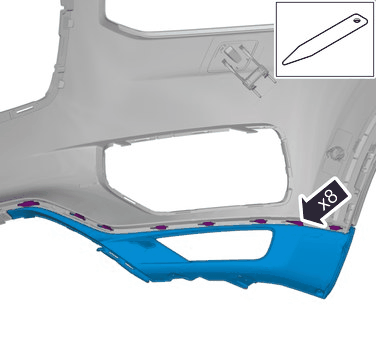

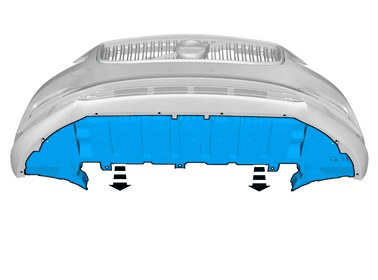

Remove the marked part.
On both sides.

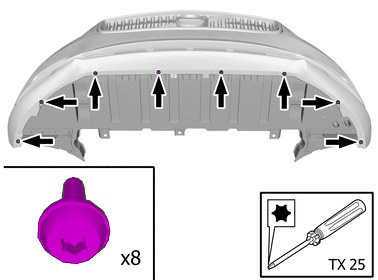

Remove the screws.

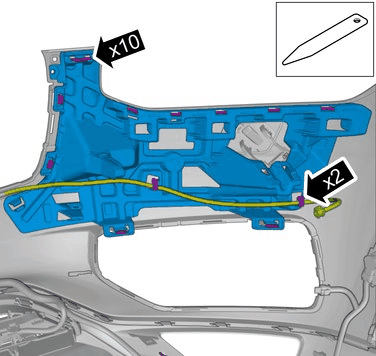

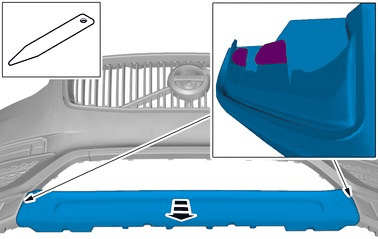

Remove the marked part.
On both sides.

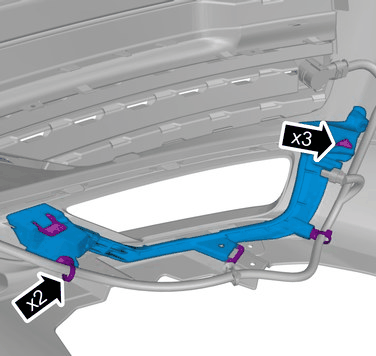

Remove the marked part.
Remove the marked part.
Remove the marked part.
Remove the marked part.
On both sides.
Remove the marked part.
Remove the marked part.
Take extra care when handling the component.
On both sides.
On both sides.
On both sides.
Remove the marked part.
On both sides.
Remove the marked part.
Remove the radiator masking, refer to: RADIATOR GRILLE

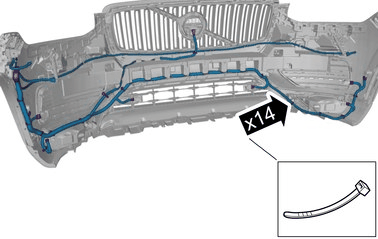

The number of connectors, cables and cable ties may vary depending on the vehicle specification.
Note the position of each cable.
VEHICLES WITH PARKING ASSISTANCE CAMERA
Remove the marked part.
Remove the marked part.
INSTALLATION

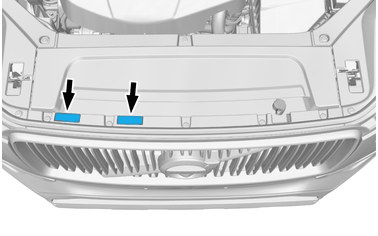

Make sure that the decal is mounted correctly.
To install, reverse the removal procedure.
