General Information

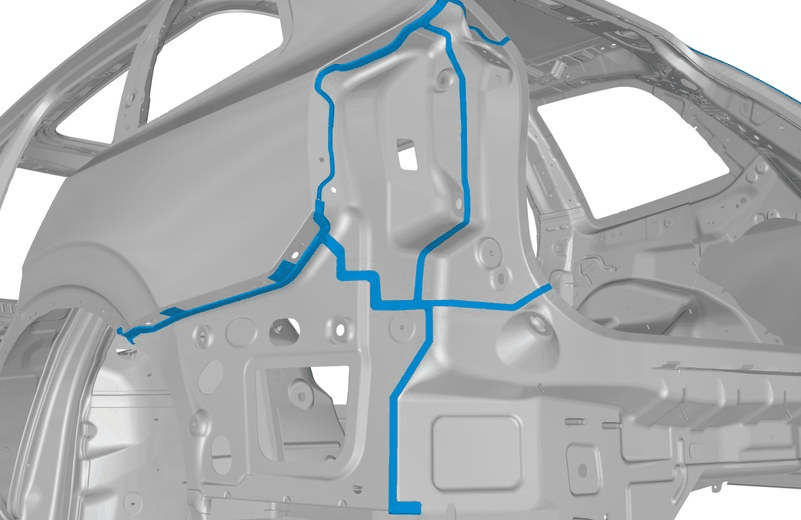

Fig 1: Vehicle Body Sealing Compound Installation Areas (1 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Sprayable body sealant, 1161651

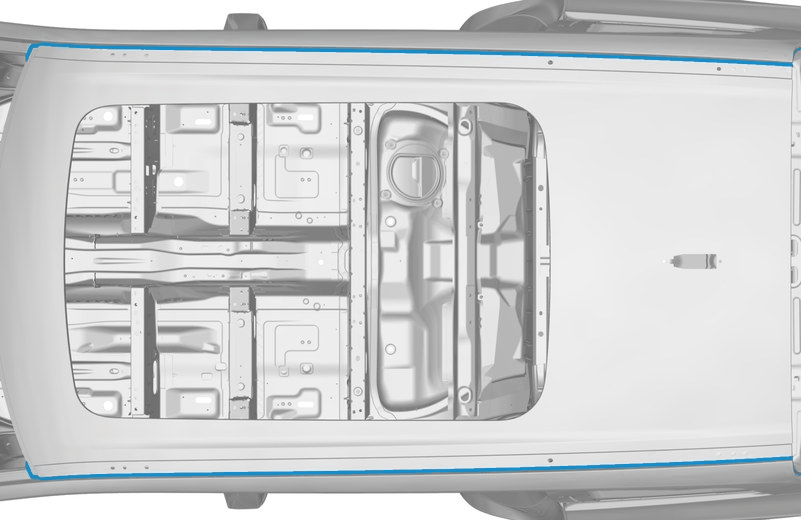

Fig 2: Vehicle Body Sealing Compound Installation Areas (2 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Seal, 3M 07333

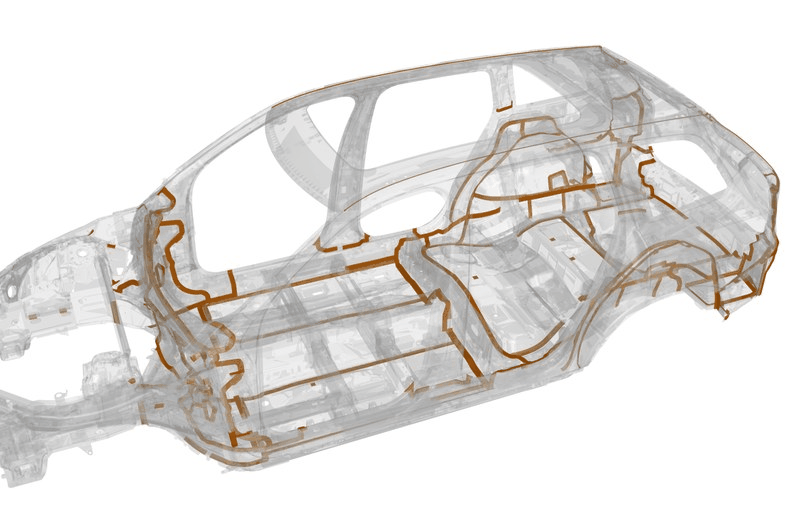

Fig 3: Vehicle Body Sealing Compound Installation Areas (3 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Sealing compound, 1161767

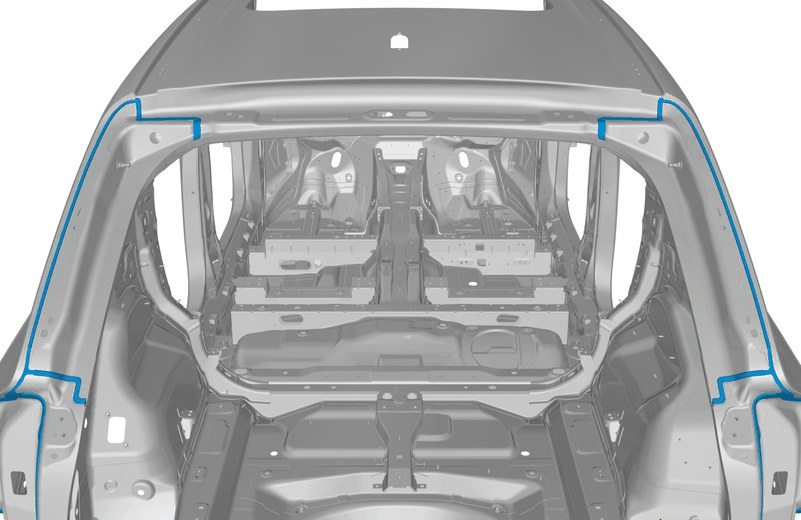

Fig 4: Vehicle Body Sealing Compound Installation Areas (4 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Sealing compound, 1161767

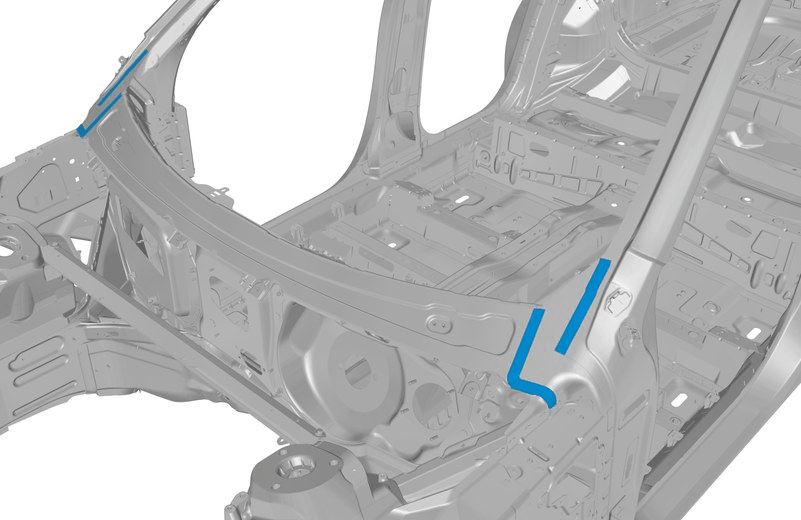

Fig 5: Vehicle Body Sealing Compound Installation Areas (5 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Sealing compound, 1161767

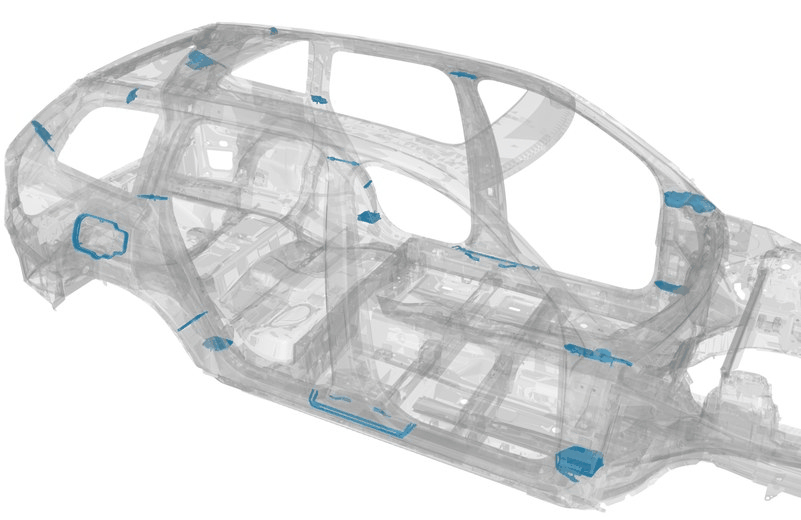

Fig 6: Vehicle Body Sealing Compound Installation Areas (6 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use: Seal, 6817640
