Hood Latch [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL1024188

Courtesy of VOLVO CARS CORPORATION

Remove louvre radiator grille, refer to: ACTIVE GRILLE SHUTTER

GLL1040854

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

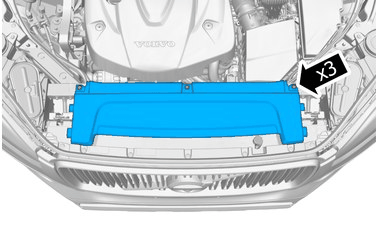

GLL1028554

Courtesy of VOLVO CARS CORPORATION

Release the catches.

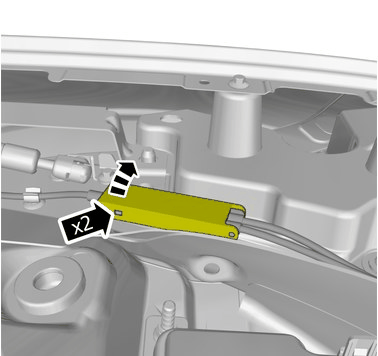

GLL1038316

Courtesy of VOLVO CARS CORPORATION

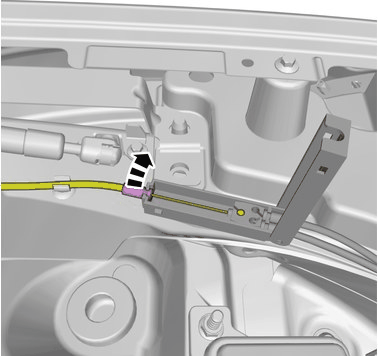

Release the cable.

GLL1020409

Courtesy of VOLVO CARS CORPORATION

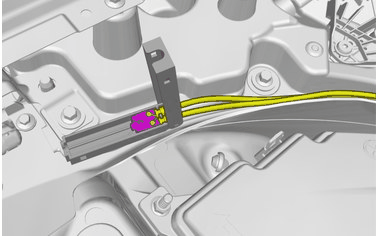

Release the cable.

APPLIES TO THE RIGHT-HAND SIDE

GLL1007702

Courtesy of VOLVO CARS CORPORATION

NOTE:

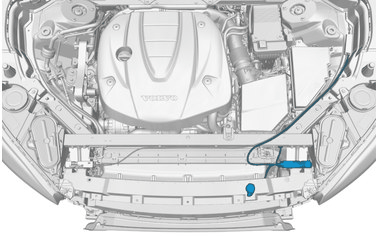

Orientation view

GLL1034646

Courtesy of VOLVO CARS CORPORATION

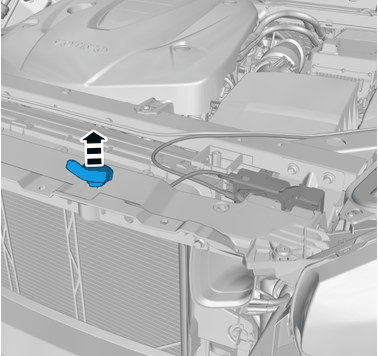

Use hands only.

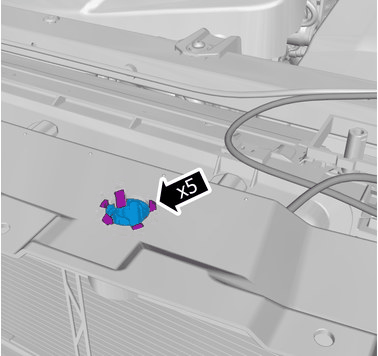

GLL1021858

Courtesy of VOLVO CARS CORPORATION

Release the catches.

GLL1013735

Courtesy of VOLVO CARS CORPORATION

Torque: M5, 5Nm

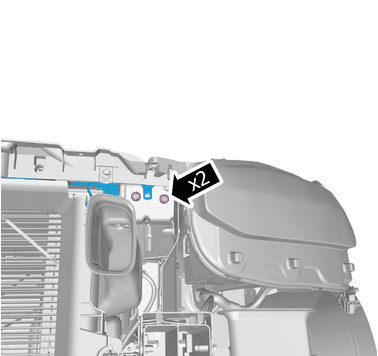

Remove the screws.

GLL1037490

Courtesy of VOLVO CARS CORPORATION

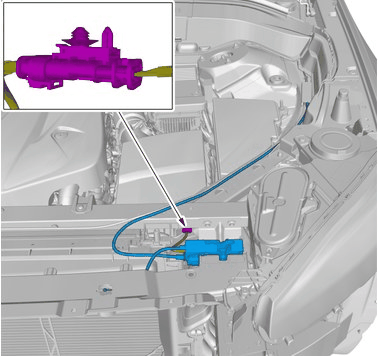

Disconnect the connector.

Remove the marked part.

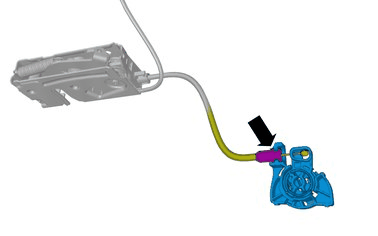

GLL1006141

Courtesy of VOLVO CARS CORPORATION

Release the cable.

Remove the marked part.

APPLIES TO THE LEFT-HAND SIDE:

GLL1026630

Courtesy of VOLVO CARS CORPORATION

Torque: M5, 5Nm

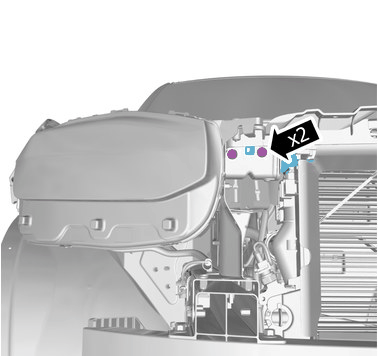

Remove the screws.

GLL1018433

Courtesy of VOLVO CARS CORPORATION

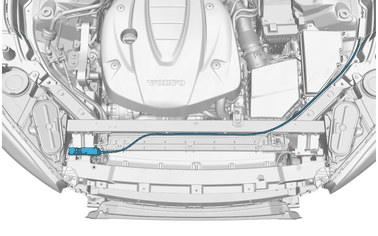

Remove the marked part.
