Hood Latch Release Cable [2016-2020]: Removal

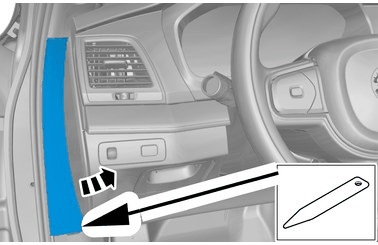

Courtesy of VOLVO CARS CORPORATION

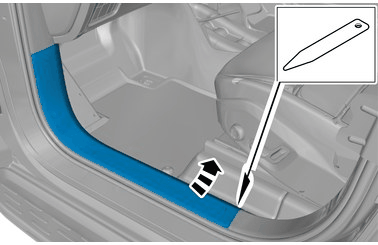

Courtesy of VOLVO CARS CORPORATION

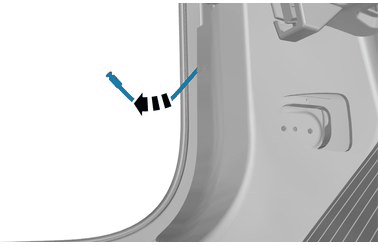

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

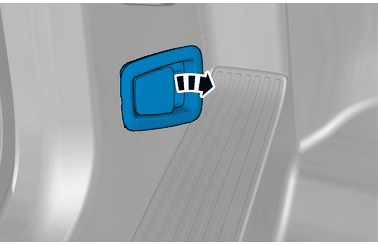

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

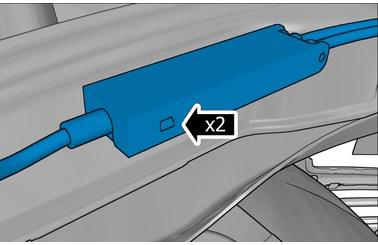

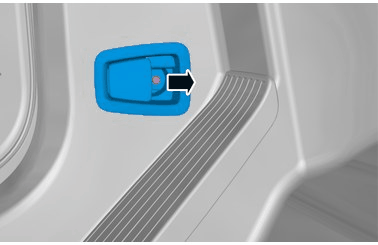

Release the catches.

Remove the part carefully

Remove the plenum cover, refer to: PLENUM COVER

Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD

Courtesy of VOLVO CARS CORPORATION

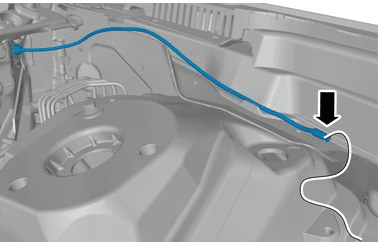

Attach a suitable draw cord to the hood latch cable.

Courtesy of VOLVO CARS CORPORATION

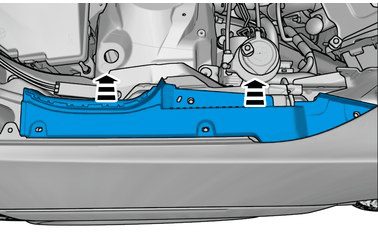

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

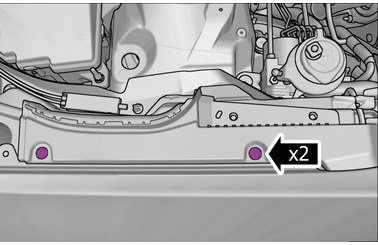

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

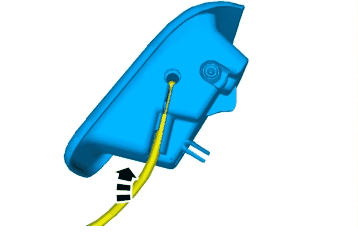

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

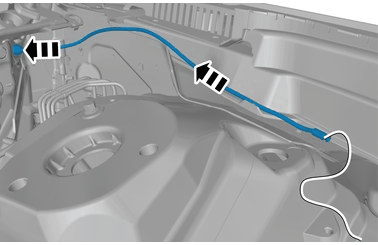

Pull the wiring through.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

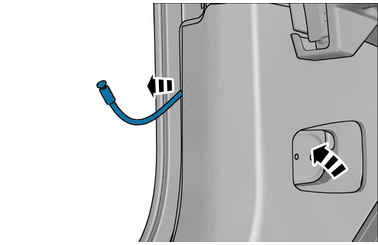

Pull the wiring through.
