Front End [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

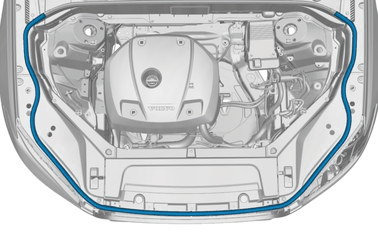

GLL1001305Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

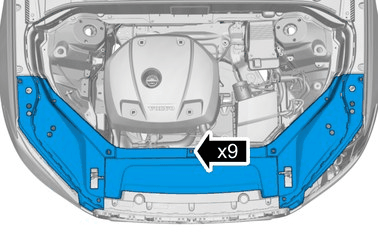

GLL1017781Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the marked part.

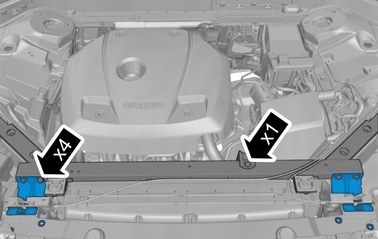

GLL1005457Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Loosen the clip.

Torque:  M6, 10Nm

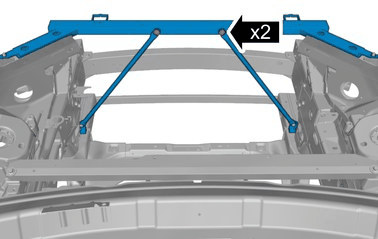

GLL1026762Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque:  M8, 24Nm

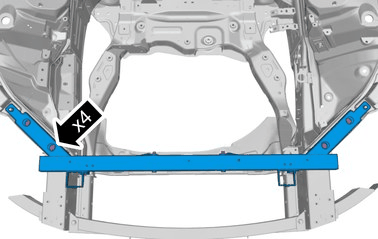

GLL1006560Courtesy of VOLVO CARS CORPORATION

Loosen the screws.
