Active Spoiler Shutter [2016-2020]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

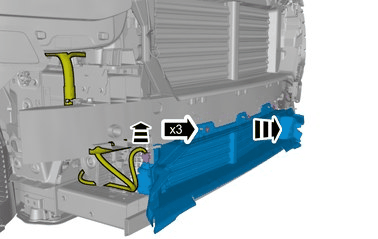

GLL1027518

Courtesy of VOLVO CARS CORPORATION

Loosen the nuts.

Disconnect the connector.
