Active Grille Shutter [2016-2020]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

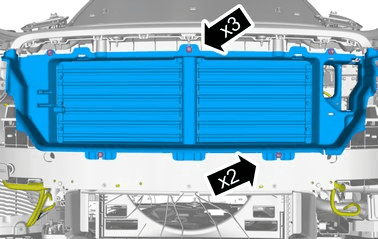

GLL1024766Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

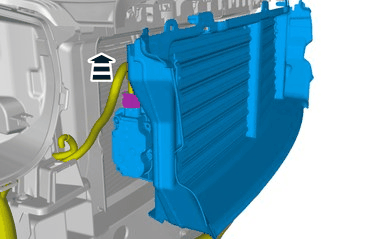

GLL1019171Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.
