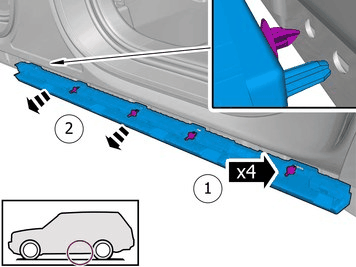

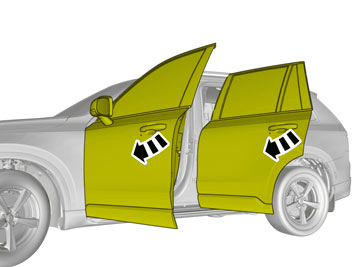

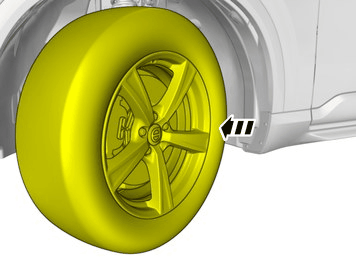

Sill Panel [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

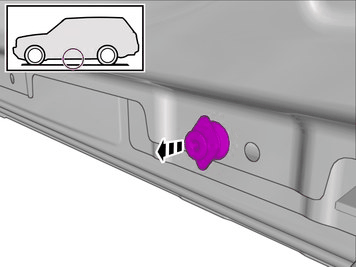

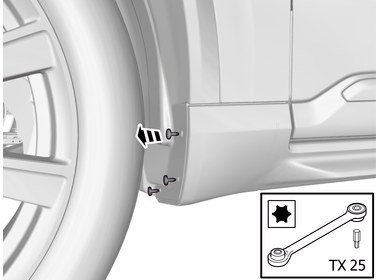

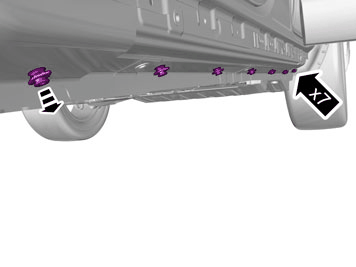

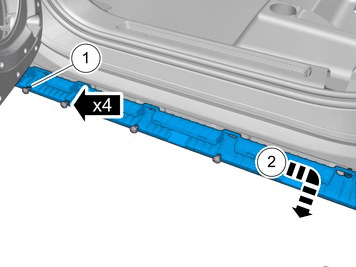

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

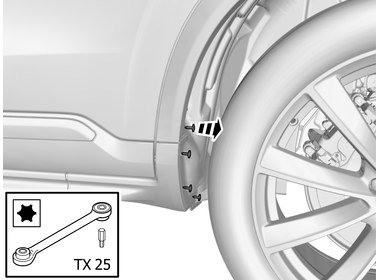

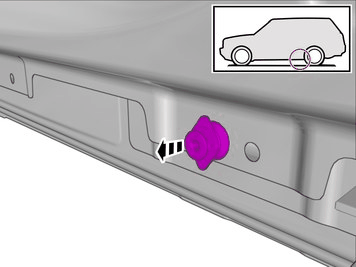

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

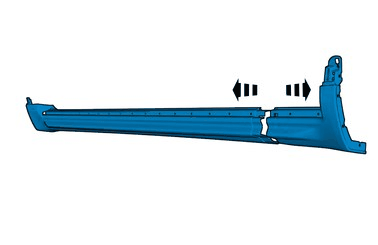

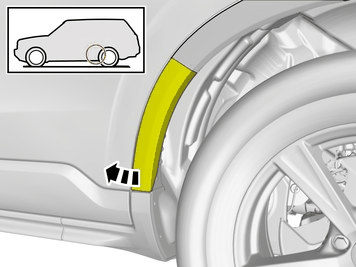

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

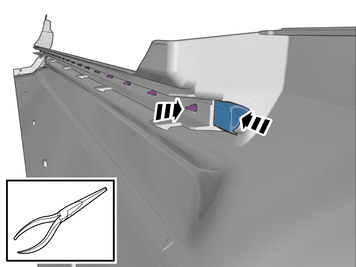

NOTE:

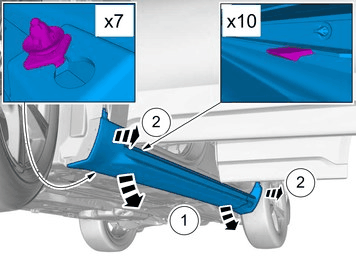

The clips consist of two parts.

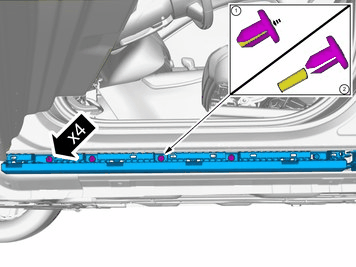

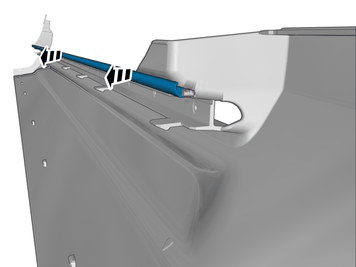

Loosen the clips.

Remove the panel.

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

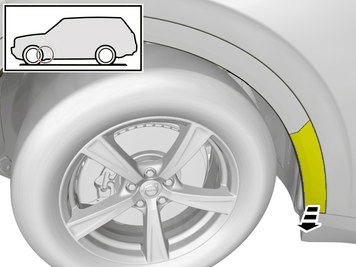

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

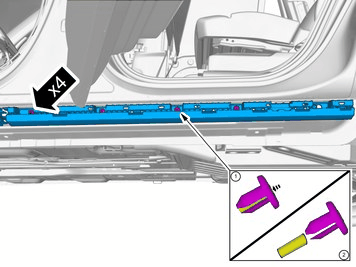

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Use: Drift

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Use: Drift

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.
